11 Safe-Drive™
187
6

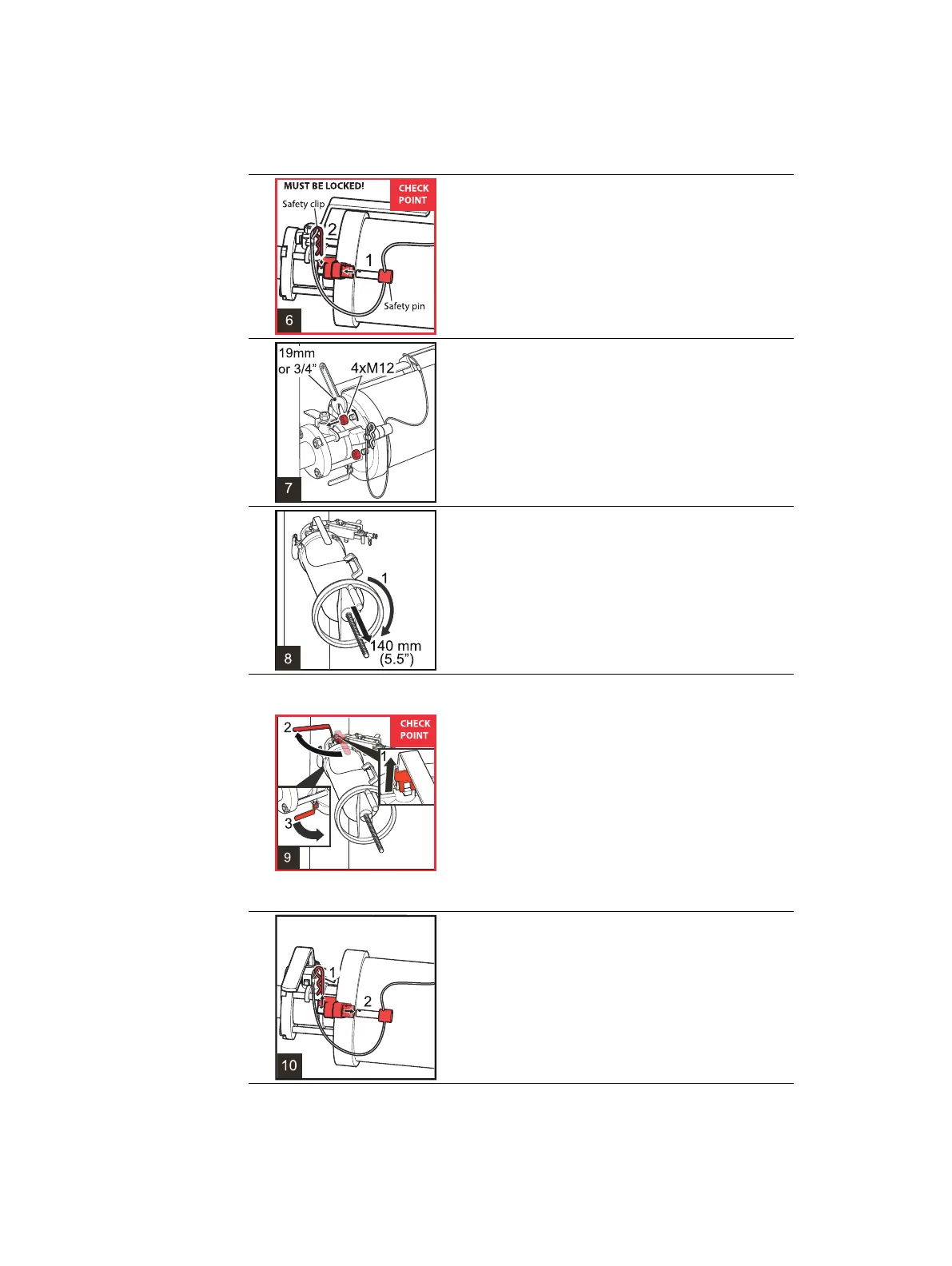

1. Insert the safety pin.
2. Lock the safety pin with the safety clip.
DO NOT PROCEED UNTIL YOU HAVE COMPLETED THIS
STEP!
7 Open and remove the four M12 nuts on the bolts
holding the sensor to Isolaon valve using a 19 mm or
¾” wrench.
8 1. To remove the sensor from the process, turn the
hand-wheel clockwise unl it stops. At this stage about
140 mm (5.5”) of the thread should sck out from the
middle of the wheel.
Warning! If you detect leaking, revert immediately to
the previous step. Do not connue removal unl the
reason for leakage has been cleared and xed.
9 1. Li up Isolaon valve handle locking plate.
2. Close Isolaon valve by turning the handle 90°.
Important: Isolaon valve is properly closed when the
handle points away from the sensor and the locking
plate drops down over the handle.
3. Open the blow-out valve under Isolaon valve for
box cleaning to get rid of any process liquid inside
Isolaon valve. Warning! Some process liquid will leak
out through the small ball valve, beware of splashing!
DO NOT PROCEED UNTIL YOU HAVE COMPLETED THIS
STEP!
10 1. Remove the safety clip.
2. Pull out the safety pin.
