PR-23 instrucon manual
11

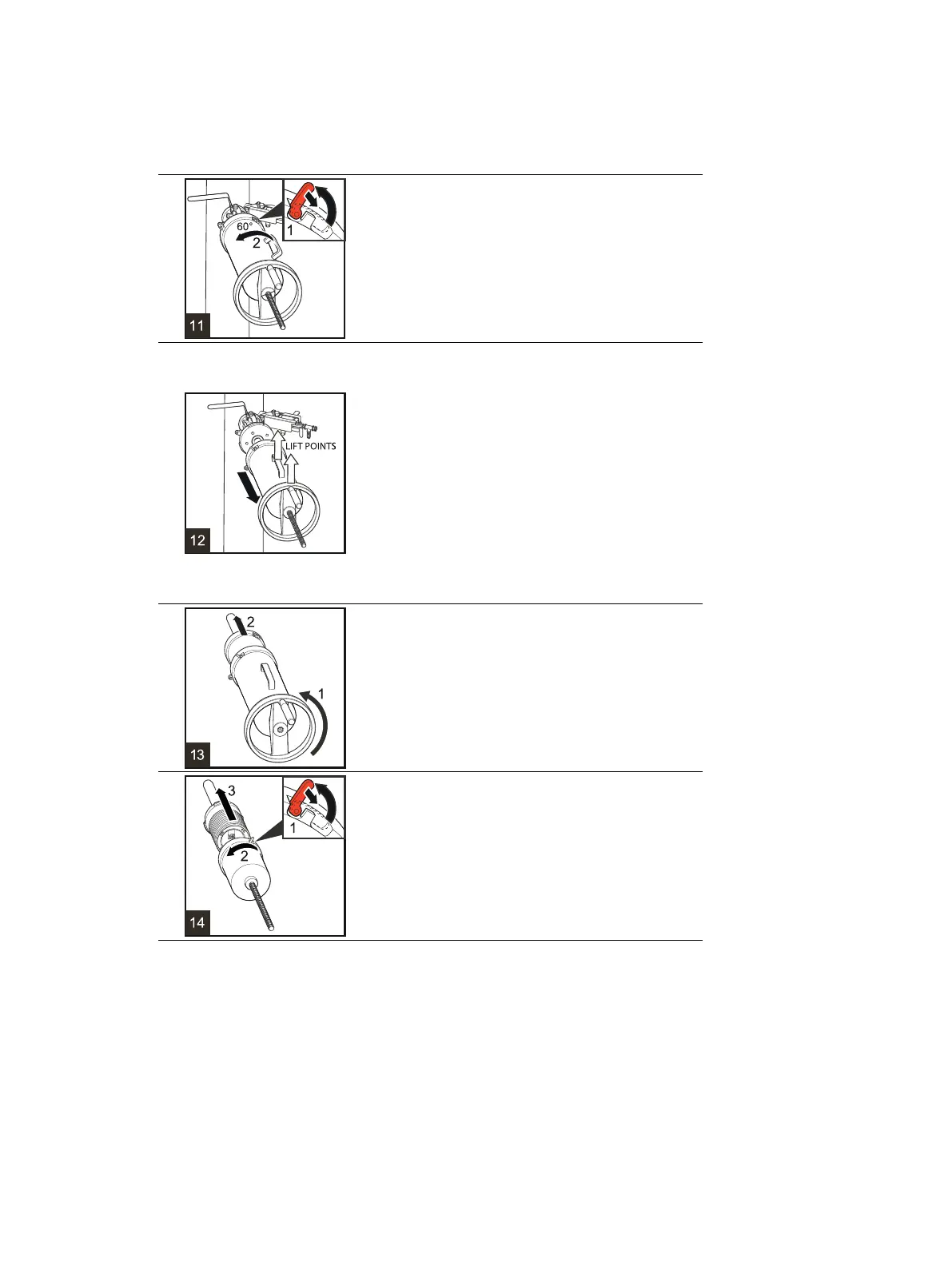

1. Li open Outer casing locking latch.
2. Rotate Outer casing 60° counterclockwise so that the
handle comes up on top.
12 Take a rm hold on the hand-wheel and the handle and
pull out Retractor with sensor inside.
Warning! A rm hold of the tool is essenal as the
combinaon of the tool and the sensor is noceably
heavier than Retractor alone.
Note: To ensure Isolaon valve aer the Safe-Drive tool
with the sensor has been removed, you can bolt a
standard ANSI 1.5” 105 lbs blind ange to Isolaon
valve with ½” (M12) bolts and nuts.
A lock can be added to Isolaon valve handle.
Warning! The sensor p is hot and may be covered
with liquor. It is recommended to rinse the sensor p
and Isolaon valve with hot water.
13 Put Retractor with sensor onto a table or similar surface
so that the hand-wheel has space to turn.
1. Turn the hand-wheel counterclockwise to drop the
thread, i.e. unl Outer casing is no longer connected to
the parts inside.
2. Pull o Outer casing.
14 1. Open the latch on Inner casing.
2. Keep sensor steady with one hand and rotate Inner
casing counterclockwise with the other hand to unlock
Inner casing from sensor.
3. Pull o the sensor.
