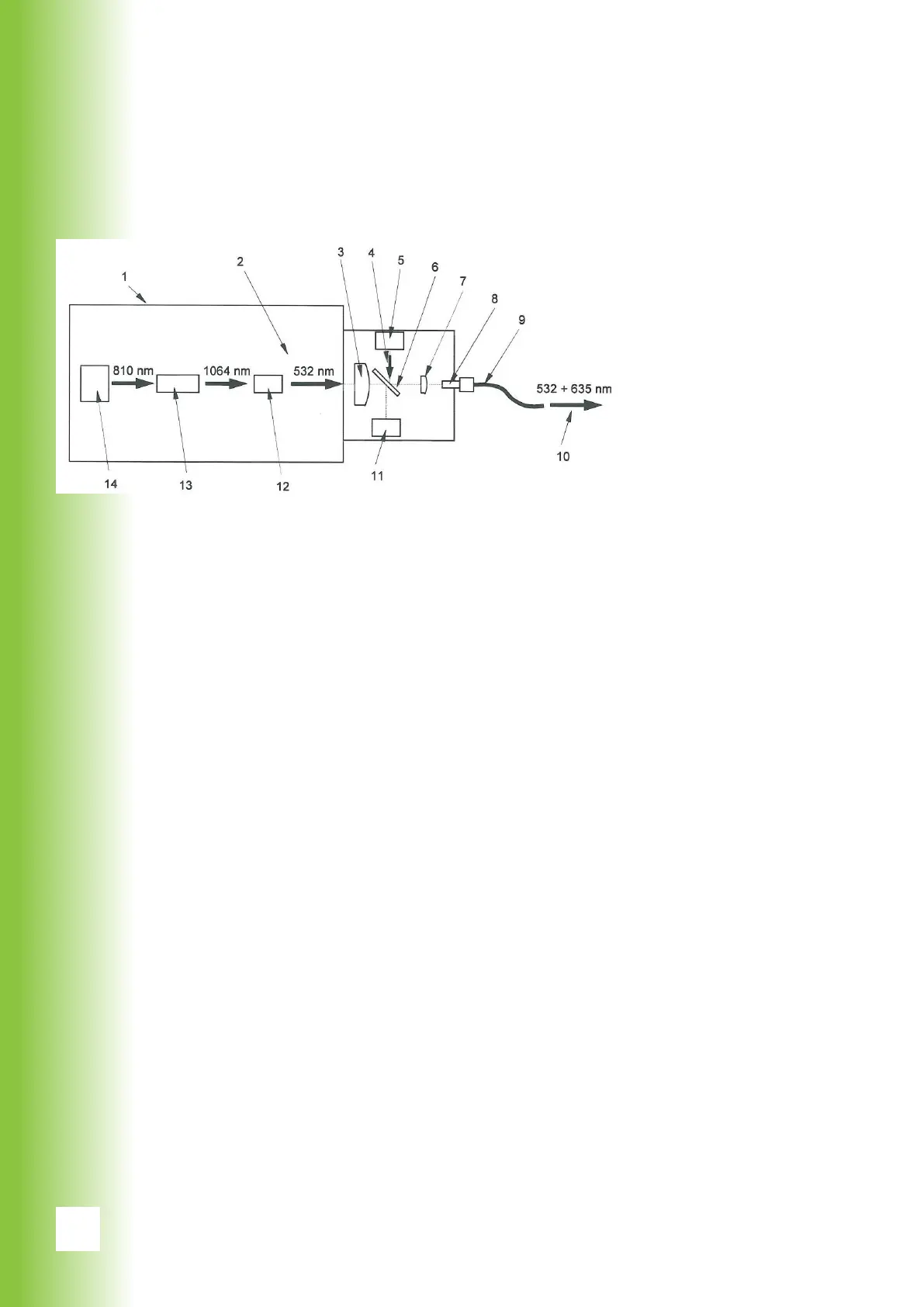

5.7. Optical beam path

5.7.1. Laser

1. Green power laser generator 532nm

2. Green beam path 532nm

3. Collimating lens

4. Red aiming beam path 635nm

5. Red aiming beam laser 635nm

6. Beam splitter

7. Coupling lens

8. Fiber connector

9. Fiber of delivery device

10. Output beam 532 nm + 635 nm aiming beam

11. Green power laser measuring diode

12. Frequency doubling crystal

13. Laser crystal (Nd:YVO)

14. Laser Diode

5. System Description
