7.3. Circle

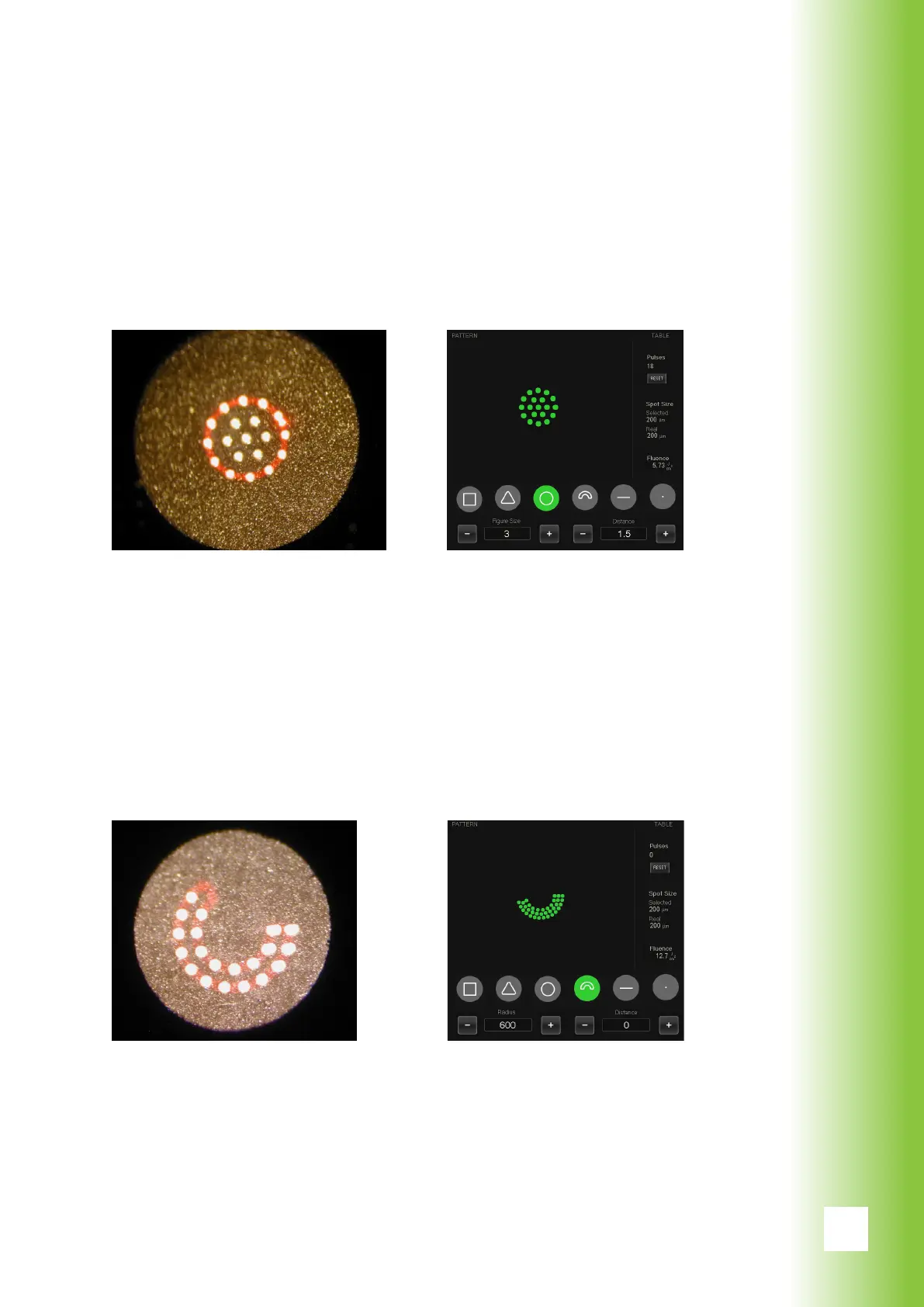

On circle mode the system emits a circle-shaped gure of
laser spots. In this case the distance between all adjacent
spots is equal. Available sizes are 1-4 for spot sizes (50
μm,) 100 μm and 200 μm and 1-3 for spot sizes 300 μm
and 400 μm
7.4. Arc
The arc-shaped pattern is resizable by quadrants. The
radius is resizable from 600 μm to 1600 μm. Size can be
adjusted using the touch screen or the Smart wheel. Ra-
dius is adjustable on the user interface. Arcs are delivered
one by one from the inner arc to the outer arc.
