Valon Multispot Laser - System (Normal)

15

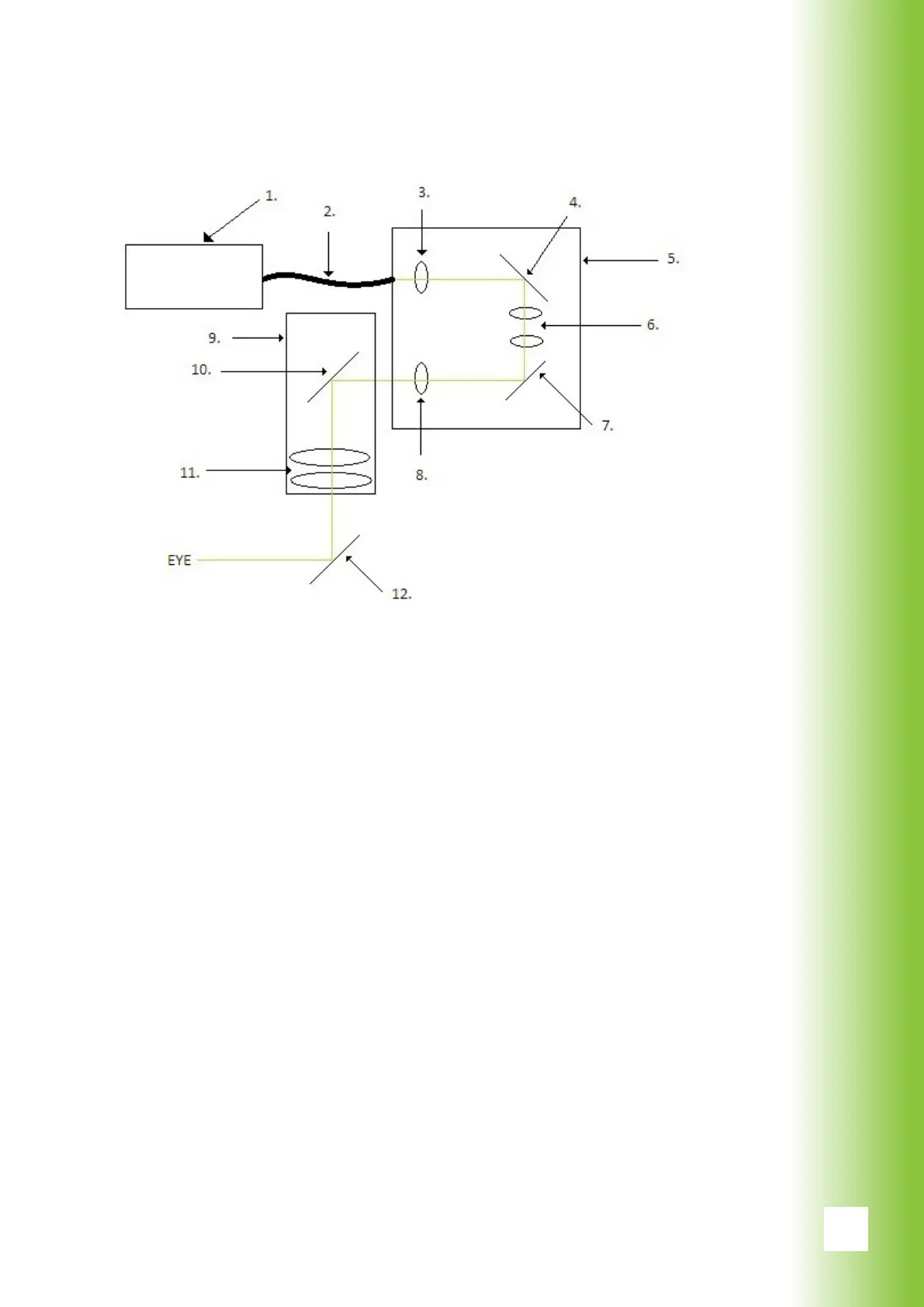

5.7.2. System (normal)
1. Laser unit 7. Scanner No 2
2. Fiber 8. Focusing lens
3. Collimating lens 9. Slit lamp
4. Scanner No 1 10. Beam splitter
5. Slit lamp adapter 11. Slit lamp optics
6. Transferring lenses 12. Slit lamp mirror
5. System Description
