7.1. Square

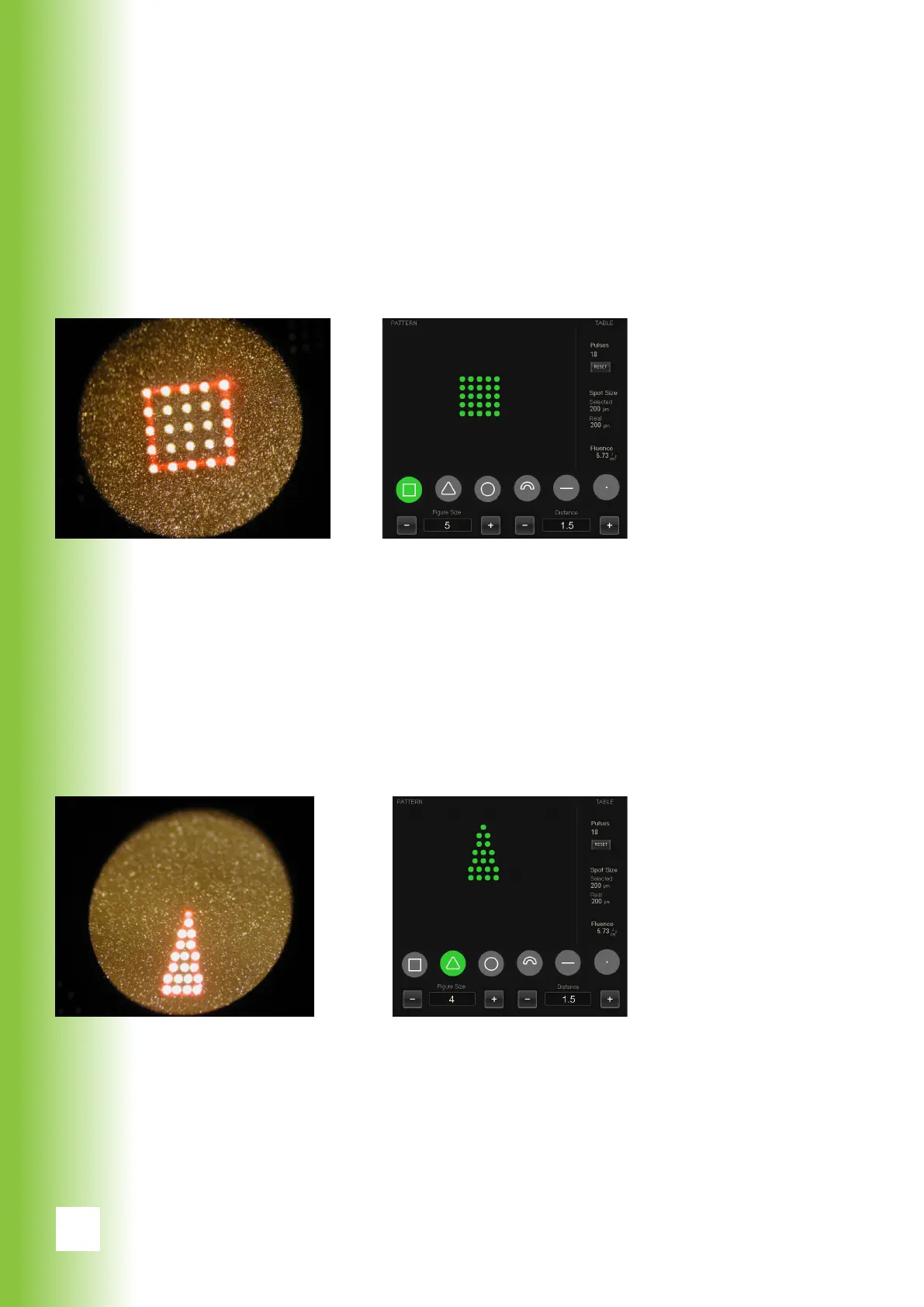

The square pattern with 5 spots on the edge and the equiv-
alent settings on the GUI. The available gure sizes are
1-5 for spot sizes (50 μm,) 100 μm and 200 μm and 1-4 for
spot sizes 300 μm and 400 μm.
7.2. Sector
On Sector mode the laser draws a triangular shaped gure
which can be used as a sector of a circle by turning it. The
vertex point of the sector is left unburned. Available sizes
are 1-4 for spot sizes (50 μm,) 100 μm and 200 μm and 1-2
for spot sizes 300 μm and 400 μm
