Technical description
8 Connections
8.1 Rear panel view
VM59.EN001
VAMP 24h support phone +358 (0)20 753 3264
177
8. Connections
8.1. Rear panel view

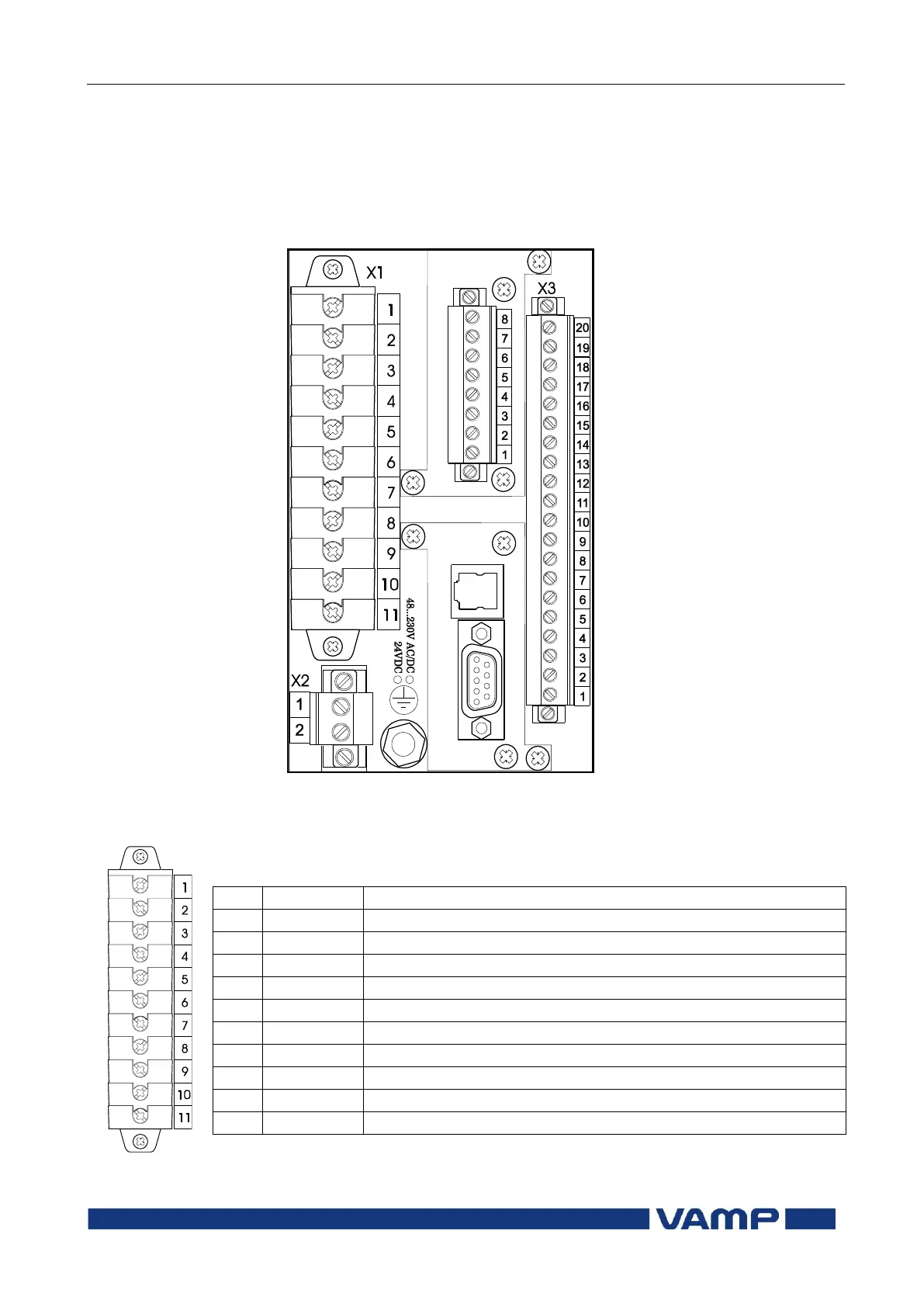

Figure 8-1 Connections on the rear panel of the VAMP 59.
Terminal X1
No
Symbol
Description
1
IL1(S1)
Phase current L1 (S1)
2
IL1(S2)
Phase current L1 (S2)
3
IL2(S1)
Phase current L2 (S1)
4
IL2(S2)
Phase current L2 (S2)
5
IL3(S1)
Phase current L3 (S1)
6
IL3(S2)
Phase current L3 (S2)
7
Io1
Residual current Io1 common for 1 A and 5 A (S1)
8
Io1/5A
Residual current Io1 5A (S2)
9
Io1/1A
Residual current Io1 1A (S2)
10
Uo
Zero sequence voltage Uo (Da)
11
Uo
Zero sequence voltage Uo (Dn)
