2.4.10. Single line diagram editing
The single-line diagram is drawn with the VAMPSET software.
For more information, please refer to the VAMPSET manual
(VMV.EN0xx).

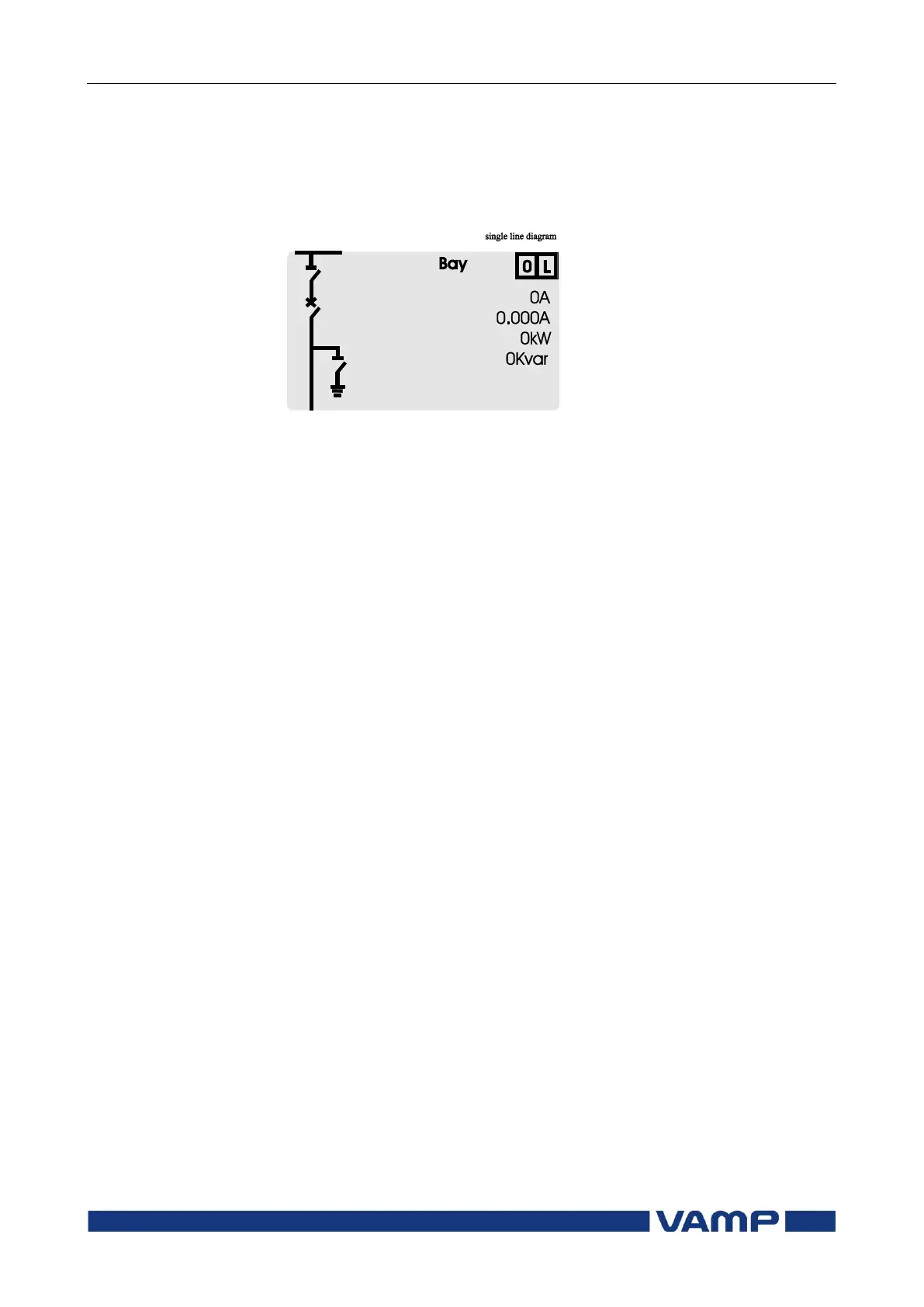

Figure 2.4.10-1 Single line diagram
2.4.11. Blocking and interlocking configuration
The configuration of the blockings and interlocking is done with
the VAMPSET software. Any start - or trip signal can be used
for blocking the operation of any protection stage. Furthermore,
the interlocking between objects can be configured in the same
blocking matrix of the VAMPSET software. For more
information, please refer to the VAMPSET manual
(VMV.EN0xx).
