VAMP 59 - Reading Event Register

2.3 Operating measures
2 Local panel user interface
Operation and configuration
24
VAMP 24h support phone +358 (0)20 753 3264
VM59.EN001
Value
Menu/Submenu
Description
THDIL3
MEAS /HARM.
DISTORTION
Total harmonic distortion of phase
current IL3 [%]
IL1har
MEAS/HARMONICS of IL1
Harmonics of phase current IL1 [%]
IL2har
MEAS/HARMONICS of IL2
Harmonics of phase current IL2 [%]
IL3har
MEAS/HARMONICS of IL3
Harmonics of phase current IL3 [%]
IL1 wave
MEAS/IL1 WAVEFORM
Waveform of IL1
IL2 wave
MEAS/IL2 WAVEFORM
Waveform of IL2
IL3 wave
MEAS/IL3 WAVEFORM
Waveform of IL3
IL1 avg
MEAS/IL1 AVERAGE
10 min average of IL1
IL2 avg
MEAS/IL2 AVERAGE
10 min average of IL2
IL3 avg
MEAS/IL3 AVERAGE
10 min average of IL3

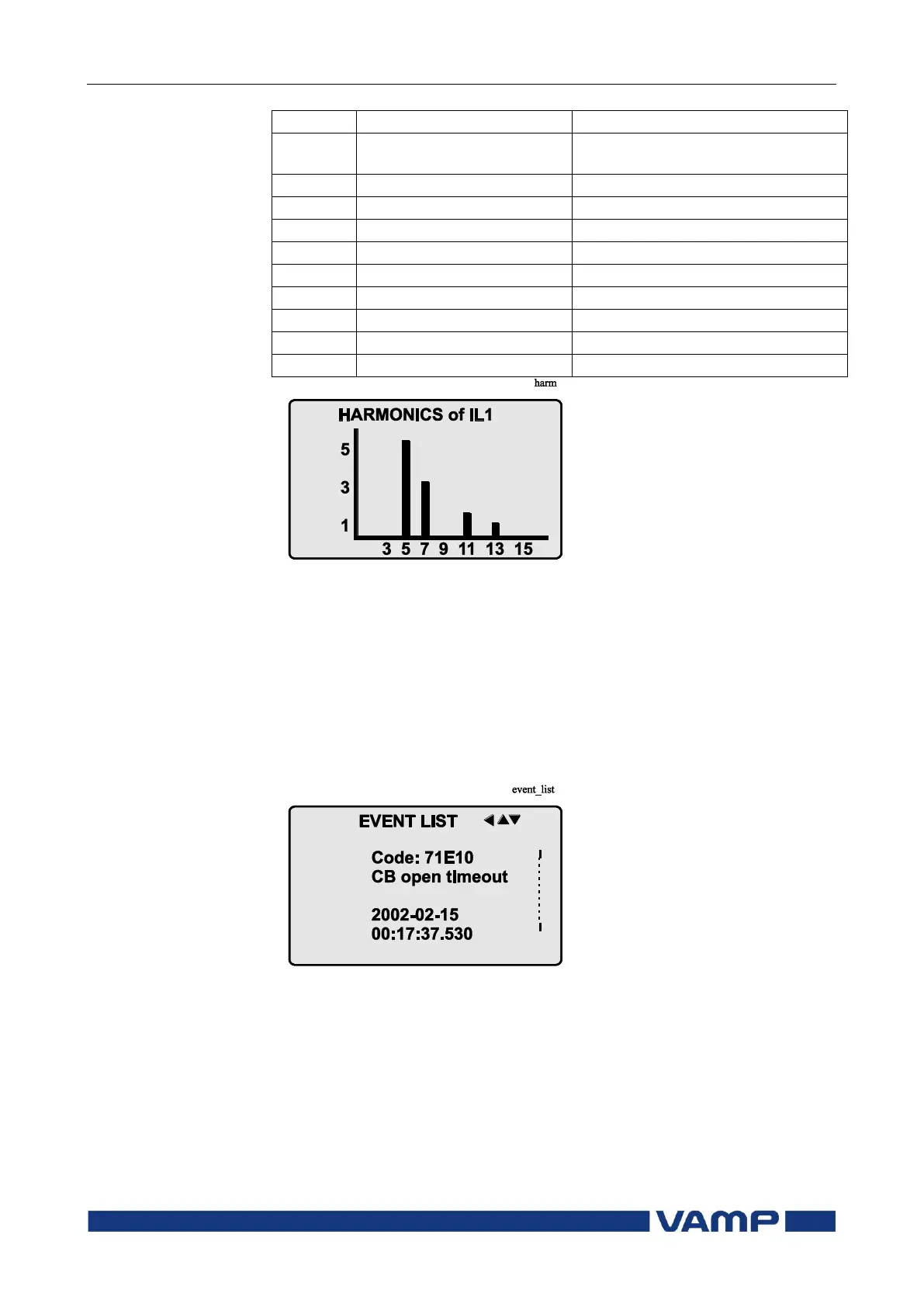

Figure 2.3.2-1. Example of harmonics bar display
2.3.3. Reading event register
The event register can be read from the Evnt submenu:
1. Push the RIGHT key once.
2. The EVENT LIST appears. The display contains a list of all
the events that have been configured to be included in the
event register.
Figure 2.3.3-1. Example of an event register
3. Scroll through the event list with the UP and DOWN keys.
4. Exit the event list by pushing the LEFT key.
It is possible to set the order in which the events are sorted. If
the “Order” -parameter is set to “New-Old”, then the first event
in the EVENT LIST is the most recent event.
