2. Local panel user interface
2.1. Relay front panel
The figure below shows an example of the front panel of the
line differential protection relay VAMP 59 and the location of
the user interface elements used for local control.

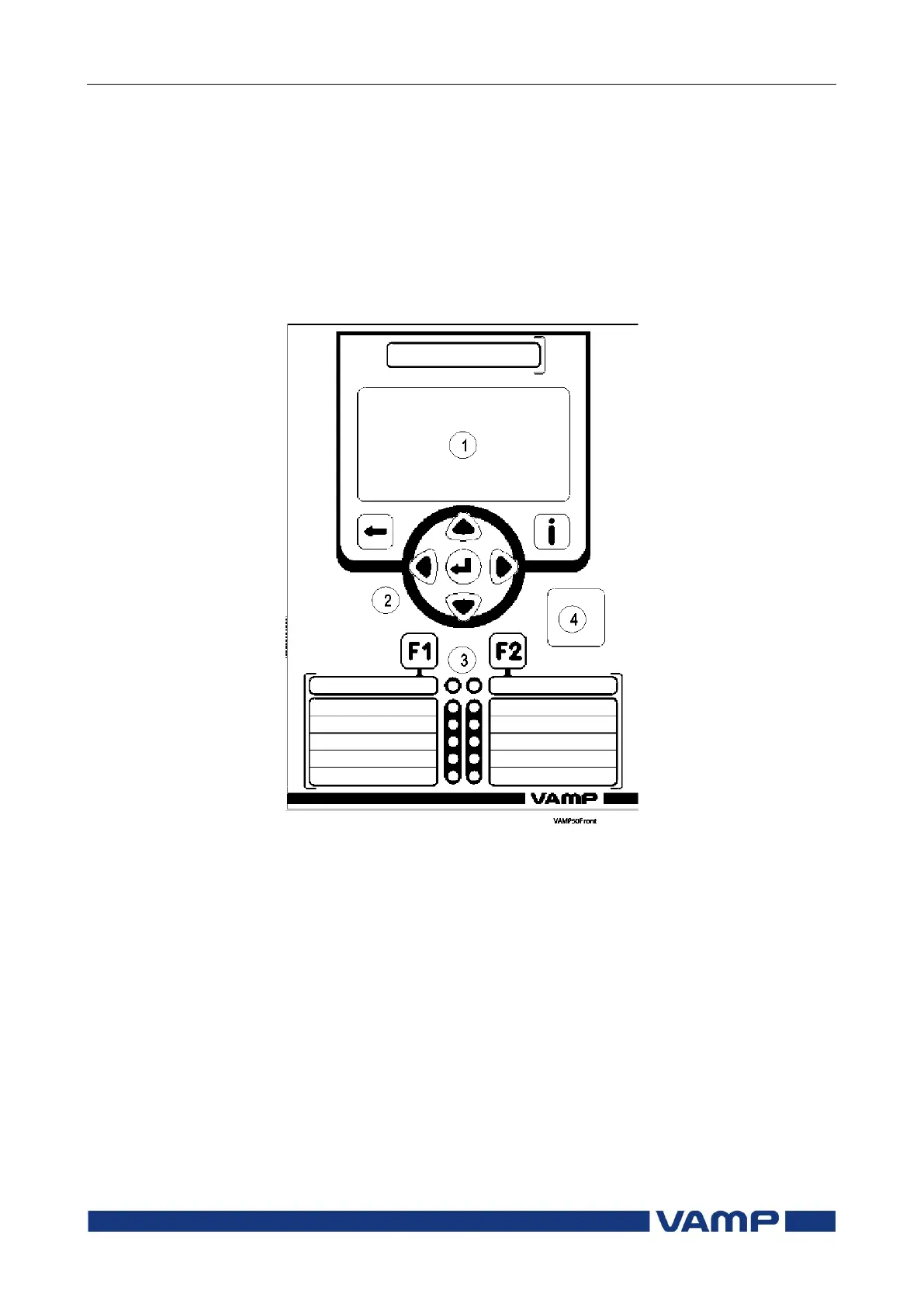

Figure 2.1-1. Relay front panel
1. LCD dot matrix display
2. Keypad
3. LED indicators
4. USB communication port for PC
