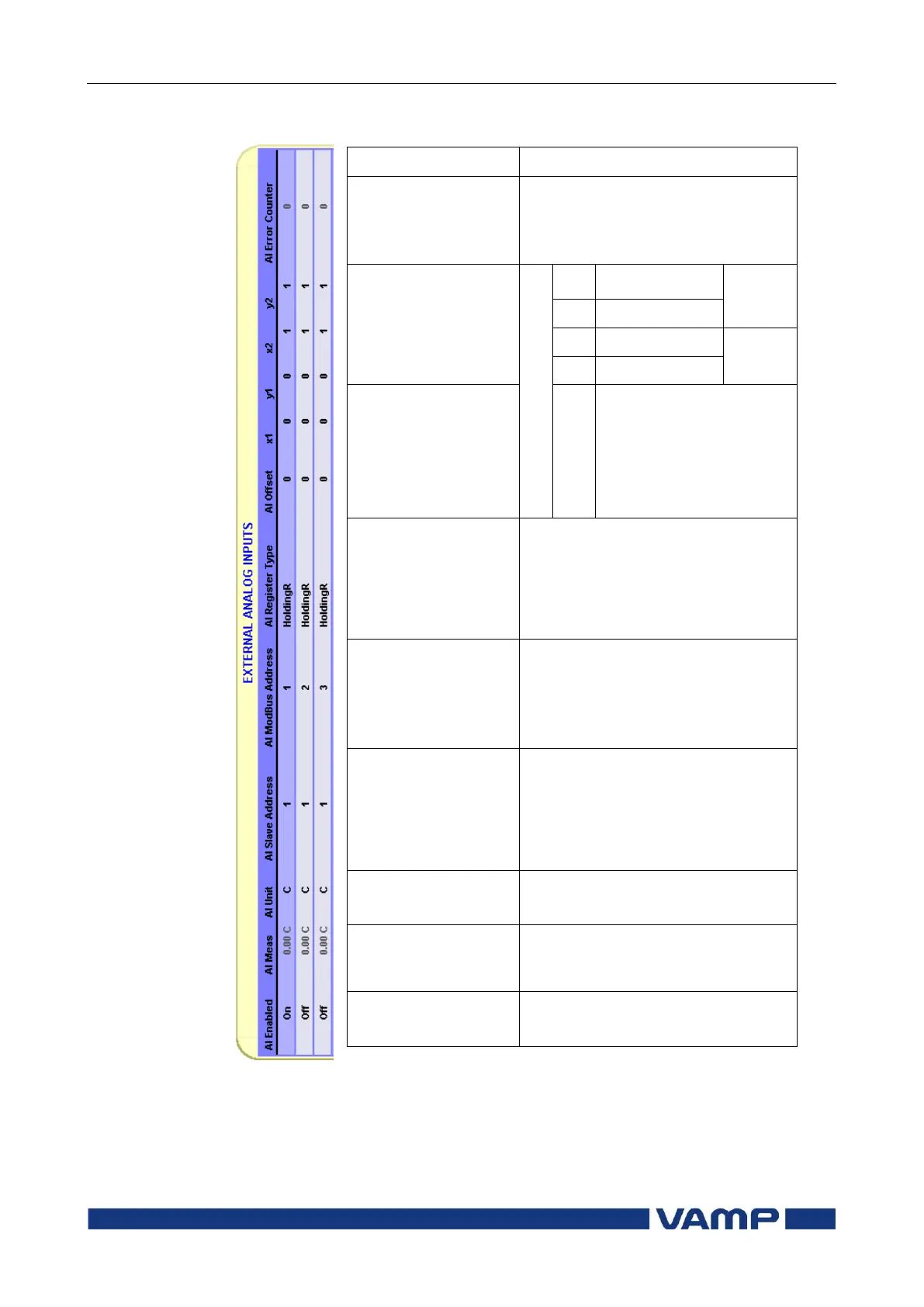

External analog inputs configuration (VAMPSET only)
Range
Description
Communication read errors
X: -32000…32000
Y: -1000…1000
Scaling
Y2
Scaled value
Point 2
X2
Modbus value
Y1
Scaled value
Point 1
X1
Modbus value
-32000…32000
Off
set
Subtracted from Modbus
value, before running XY
scaling
InputR or HoldingR
Modbus register type
1…9999
Modbus register for the
measurement
1…247
Modbus address of the I/O device
C, F, K, mA, Ohm or
V/A
Unit selection
Active value
On / Off
Enabling for measurement
