2.3 General features of
protection stages
2 Protection functions
Technical description
48
VAMP 24h support phone +358 (0)20 753 3264
VM59.EN001

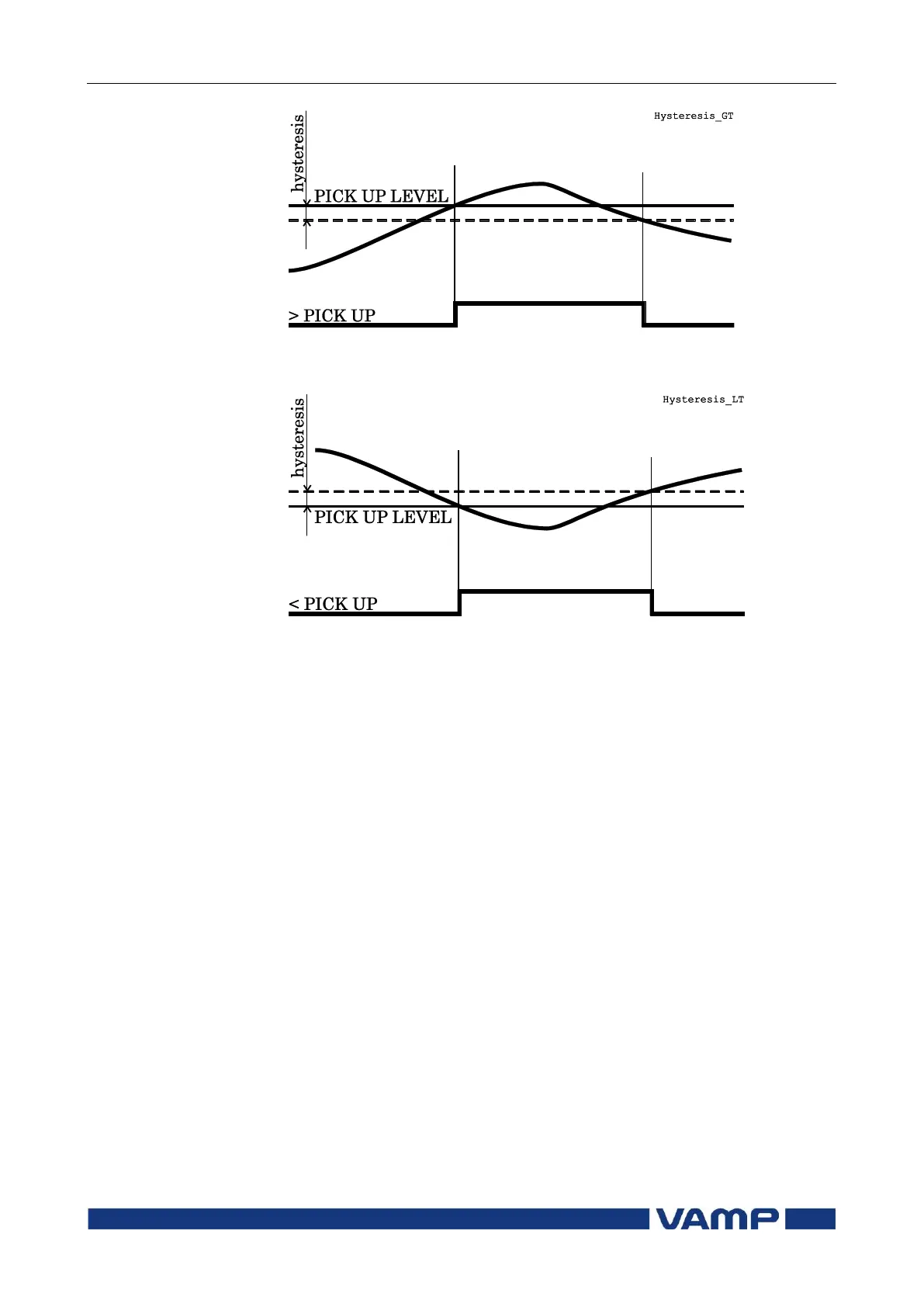

Figure 2-3 Behaviour of a greater than comparator. For example in
overcurrent stages the hysteresis (dead band) acts according this figure.
Figure 2-4 Behaviour of a less than comparator. For example in
undercurrent stage the hysteresis (dead band) acts according this figure.
