WRM-10P/WRM-40 OPERATING INSTRUCTIONS
6
3.0 CONTROLS AND INDICATORS
WRM-10P controls and indicators are
shown in Figure 1.0. WRM-40 controls and
indicators are shown in Figure 2.0. A leader
line with an index number points to each
control and indicator, which is cross-
referenced to a functional description in
Table 2.0 and Table 3.0. These tables
describe the function of each item on the
control-panel. The purpose of the controls
and indicators may seem obvious, but users
should become familiar with them before
using the WRM-10P/40. Accidental misuse
of the controls will usually cause no serious
harm. Users should also be familiar with the
safety summary found on the front page of
this operators manual.

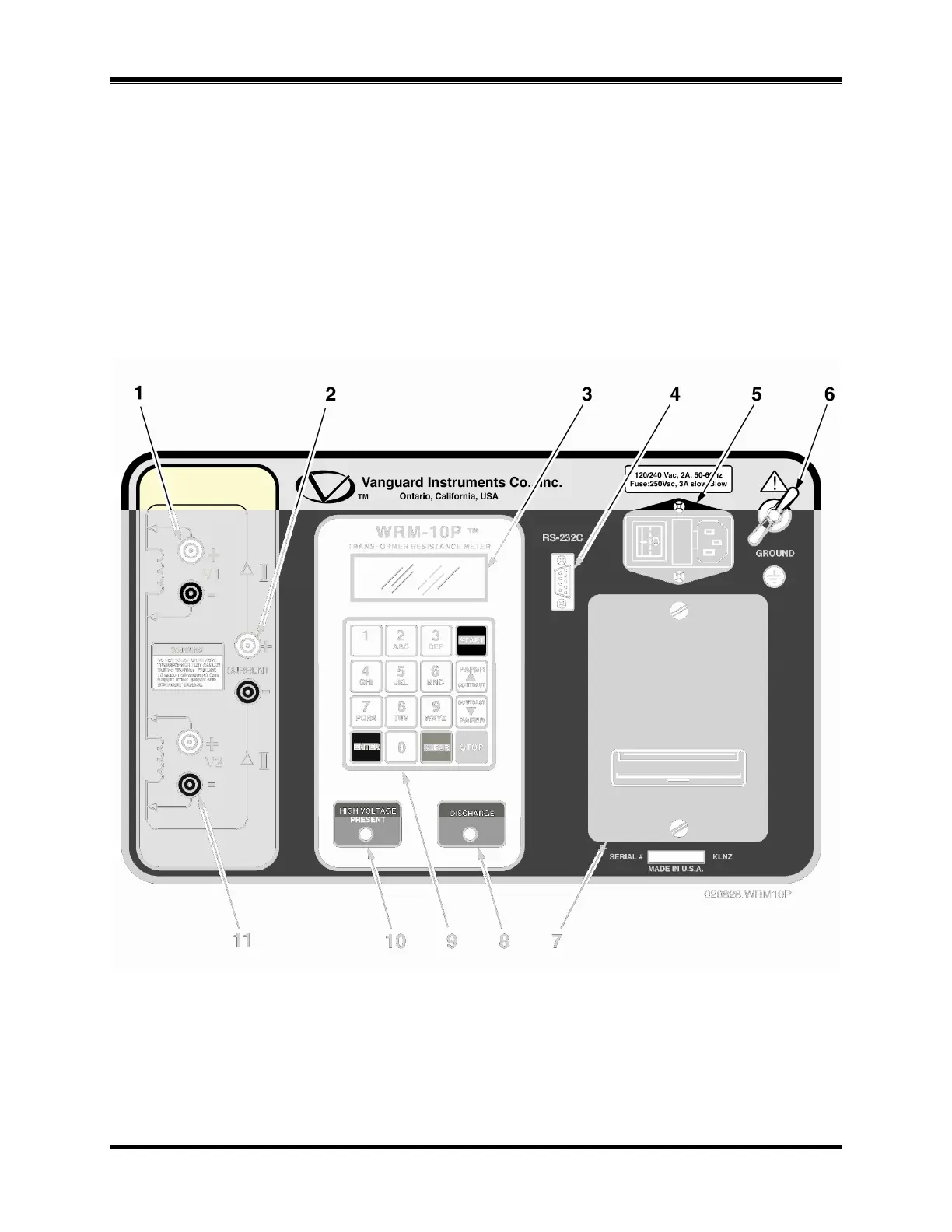

Figure 1.0 WRM-10P Controls and Indicators
