5. Click the Soft Calib tab and click the Dark button to acquire Dark Calibration Data.
6. Enter the (HFST value worked in step 2.3) + 3600.
ex. If it is [SPM_HFST_200], input [SPM_HFST_3800].
7. Click the Capture_CTB button to acquire an image.
8. Click the V Proj button to check the image.

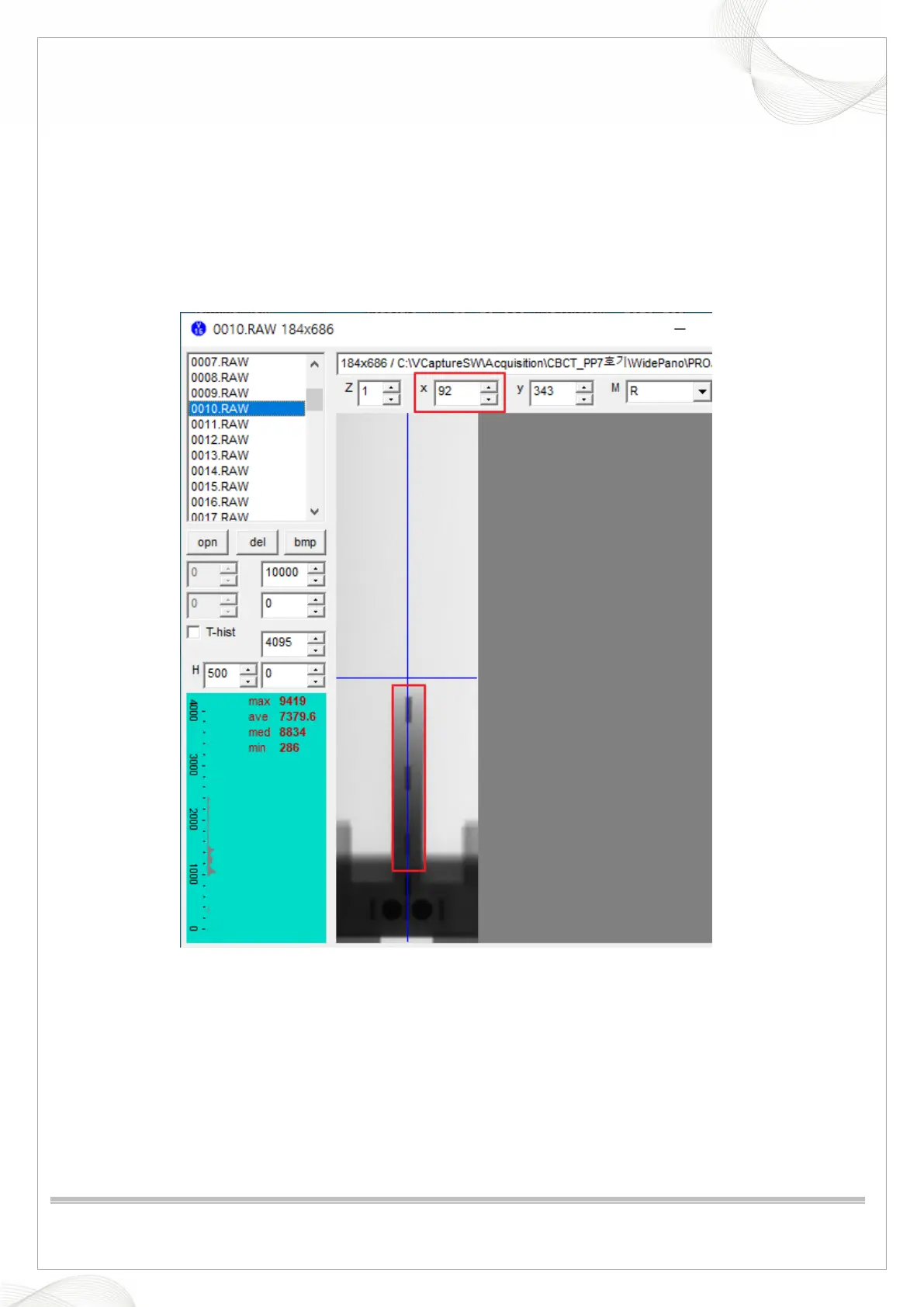

9. Enter 92 on the X-axis and check if the three pins are aligned in a line as shown in the image
below.
