9-48

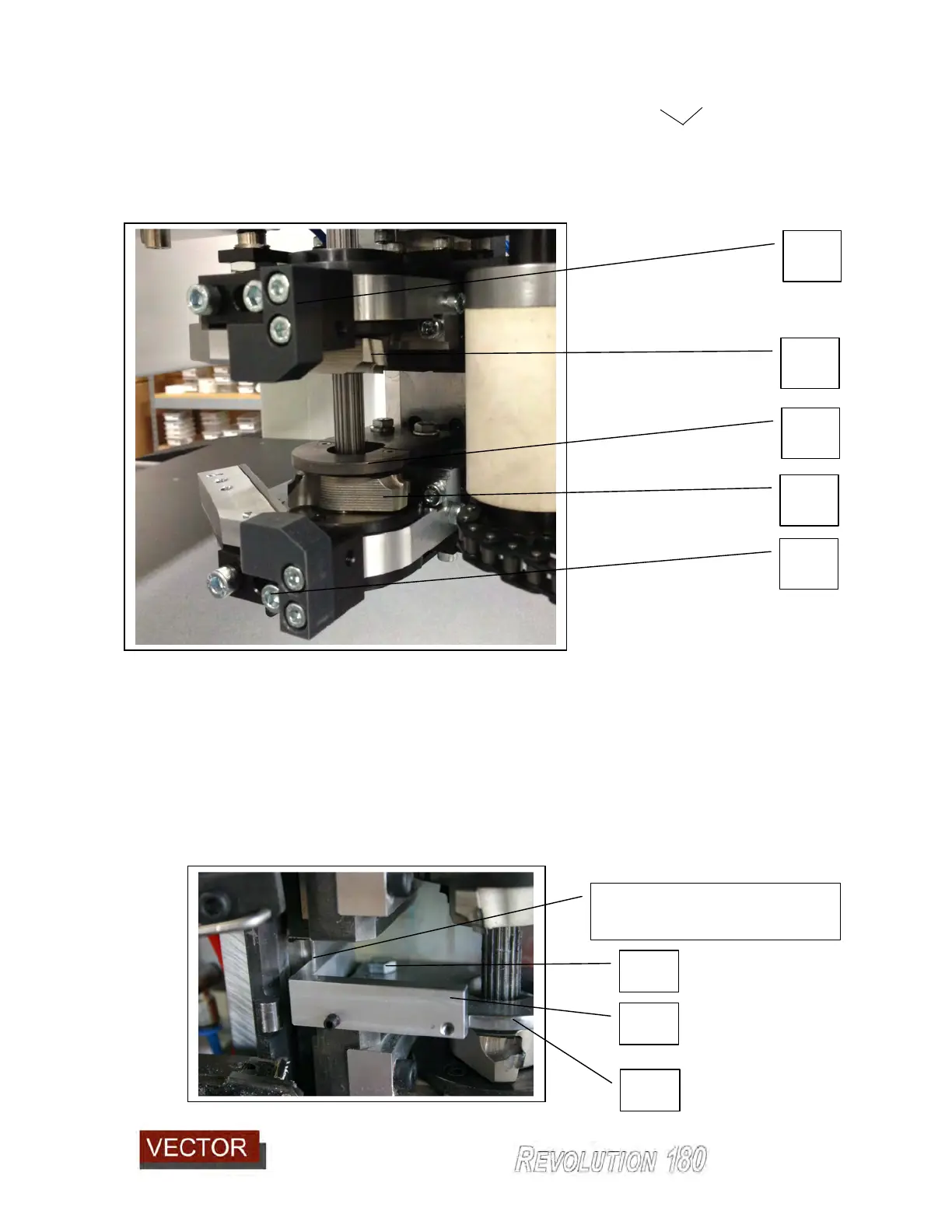

9.2.7 Setting Trimmer Shoes
9.2.7.1 Setting the horizontal tracer shoe
The horizontal shoe (928) controls the horizontal position of the cutters and operates for
both the top (932) and bottom (931) cutter heads.
The horizontal tracer shoe (928) serves to control the basic shape of the radius.
Moving the show outward past the end of the cutter will reduce the amount of radius which
is formed on the edge material. Moving it back will create more shape.
It is usual to concentrate on setting the shape of the radius before adjusting the vertical
shoes to achieve a close trim to the top and bottom surfaces of the panel.
Adjustment of the horizontal shoe (928) is made easy with the use of the adjustment
gauge (980) which is provided in the toolkit of the machine
928
980
Shoulder of linear bearing
rail
981
929
928
930
931
932
