9.1.3 Turning on the glue and setting glue height to match panel thickness.

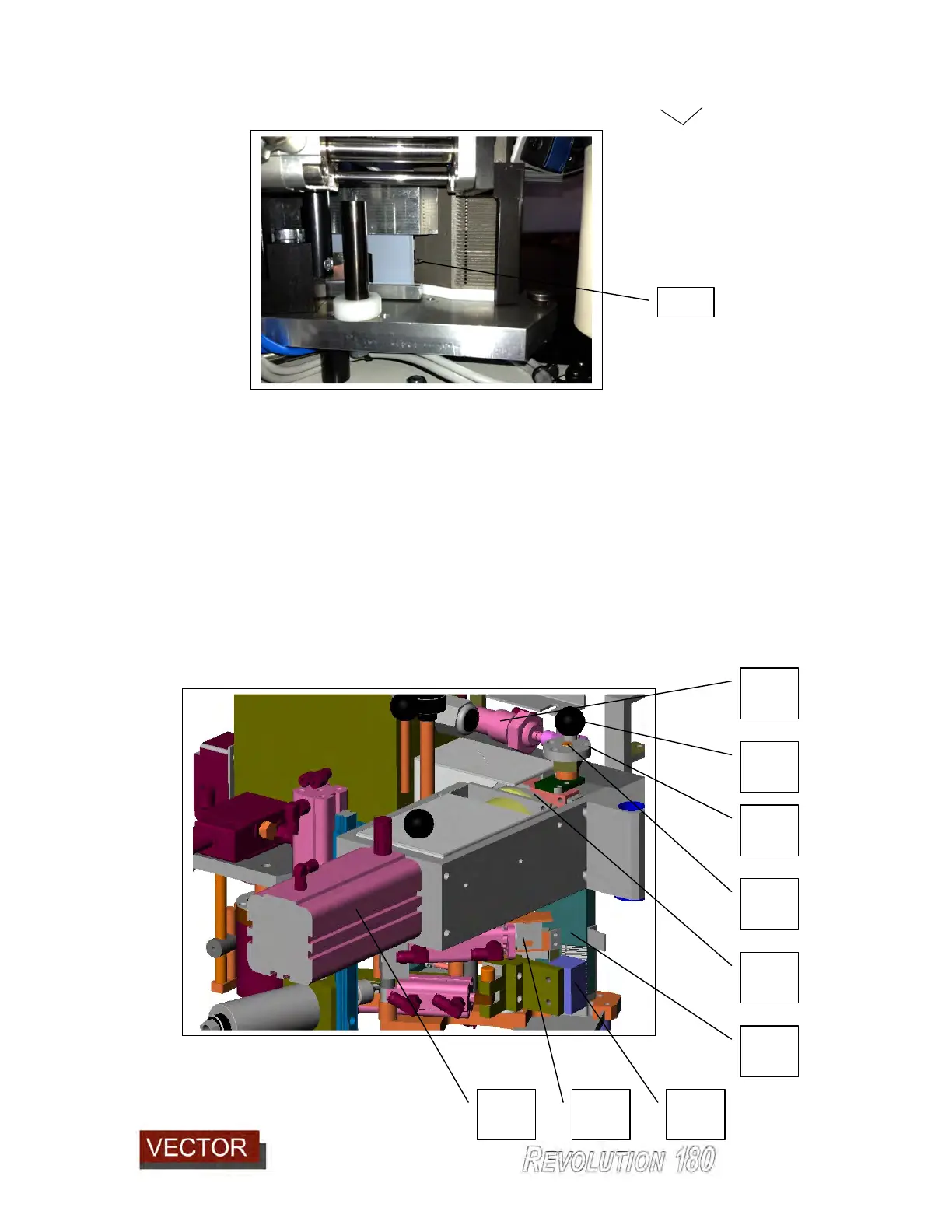

The glue nozzle comprises:
912 Cartridge Cylinder for pressing the cartridge of glue into the nozzle.
913 Element 1 Comb element for melting the cartridge
914 Element 2 Nozzle element
915 Dosing cylinder for controlling the glue flow
916 Dosing bar for metering the correct width of glue band onto the tape.
917 Dosing ring for setting which slot is used on the dosing bar.
918 Dosing pin used in conjunction with dosing ring.
919 Tape presser for pressing the tape against the nozzle
920 Nozzle wiper for wiping residual glue off the nozzle before each panel.
915
918
917
916
913
914
919 920 912
911
