9.4 Cycle functions.
The patented Vector Revolution 180 system is set up to automatically anticipate impending
conditions and adapt it’s settings accordingly to ensure optimum performance.
Standard conditions are considered to be principally straight edges or gently curving edges.
Special conditions are deemed to be tight convex (external) corners, tight concave (external)
corners and large radius concave corners.
The design of the Vector Revolution 180 is such that little operator setting is required to handle
these conditions. The settings which are required are set from the control screen (refer section
9.2.2). As the aggregate progresses around the panel, it anticipates the differing conditions via a
series of sensors.

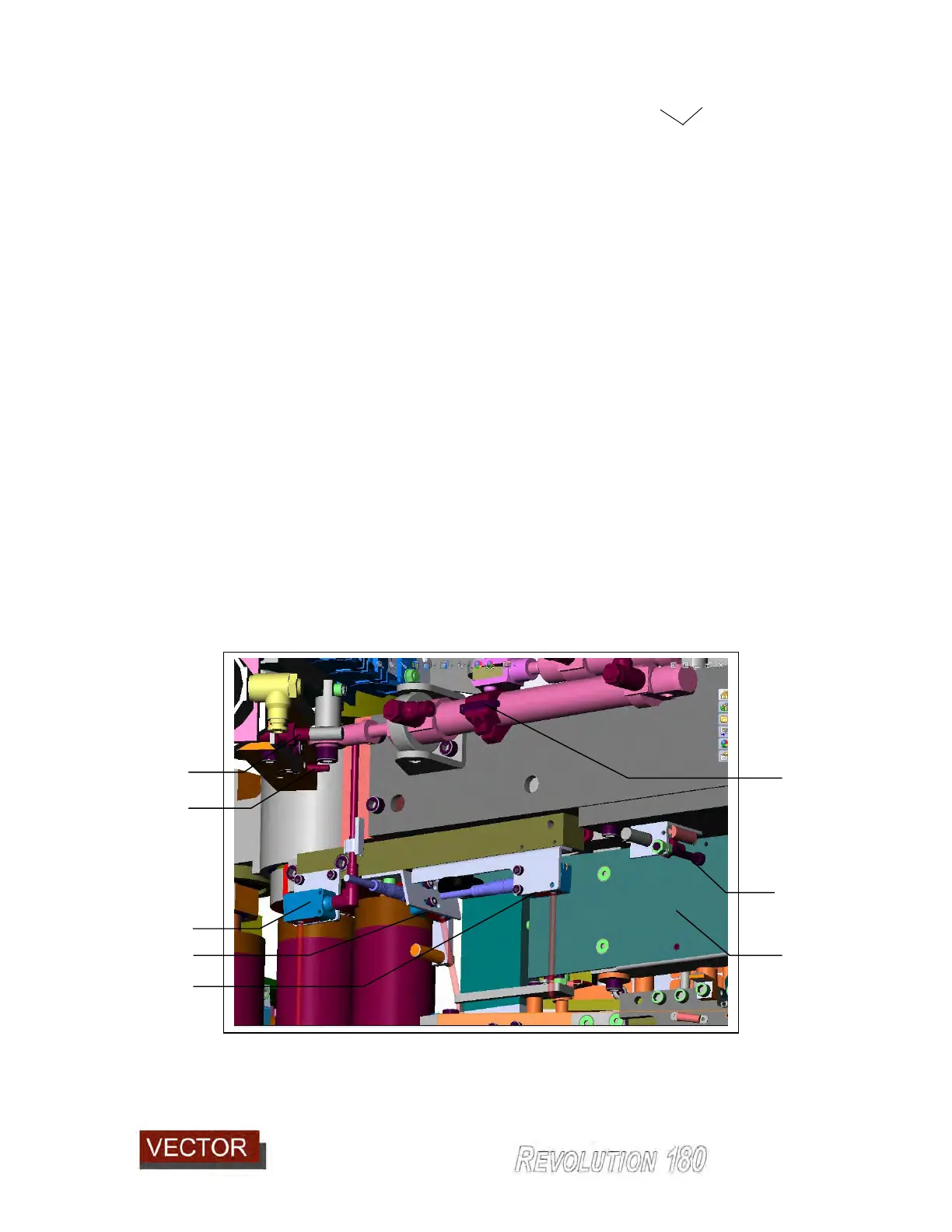

LIST OF SENSORS
910 S21 Concave Sensor
911 S24 Convex Sensor
912 S23 Pivot Back
913 S25 Pivot Forward
914 S27 Bump Switch (for tight 90 degree internal corners)
915 S32 Bump Sensor (for gentle and non-90 degree internal corners)
916 S28 Board Sensor
925 Bump Bar Plate
926 Bump switch slide lever
935 S45 Glue Station back 45 degrees sensor
