5.4.2.1 Checking the direction of rotation
All motors have been switched by the factory to the correct direction of rotation.

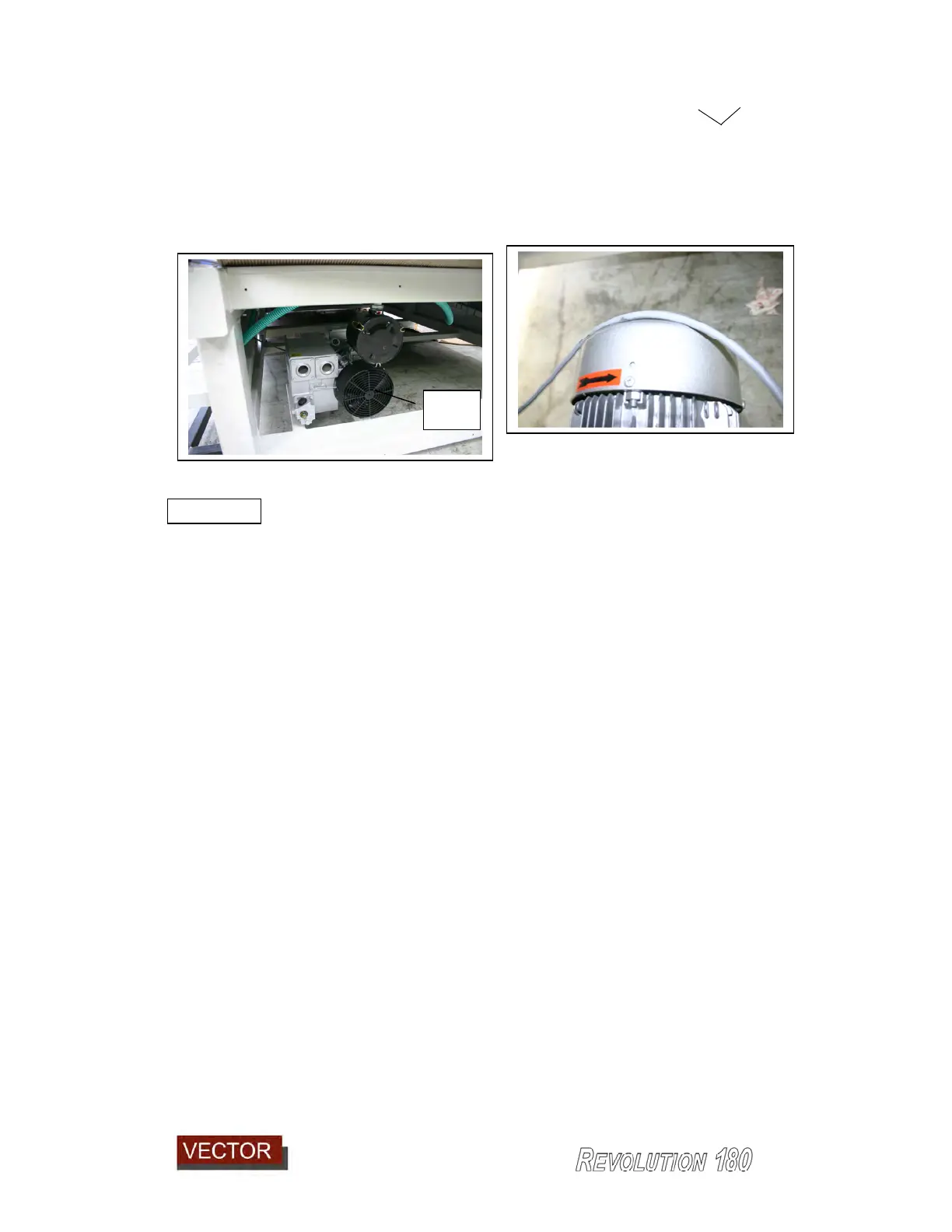

To check the direction of rotation for the entire machine, jog the vacuum pump and
check the fan direction to match the arrow on the fan cover.
Pump motor rotation clockwise when viewed from front
If the direction of rotation is wrong, have the main connection
corrected by an electrician.
The machine is now ready for operation.
CAUTION!
Front
