9.7 Alarms

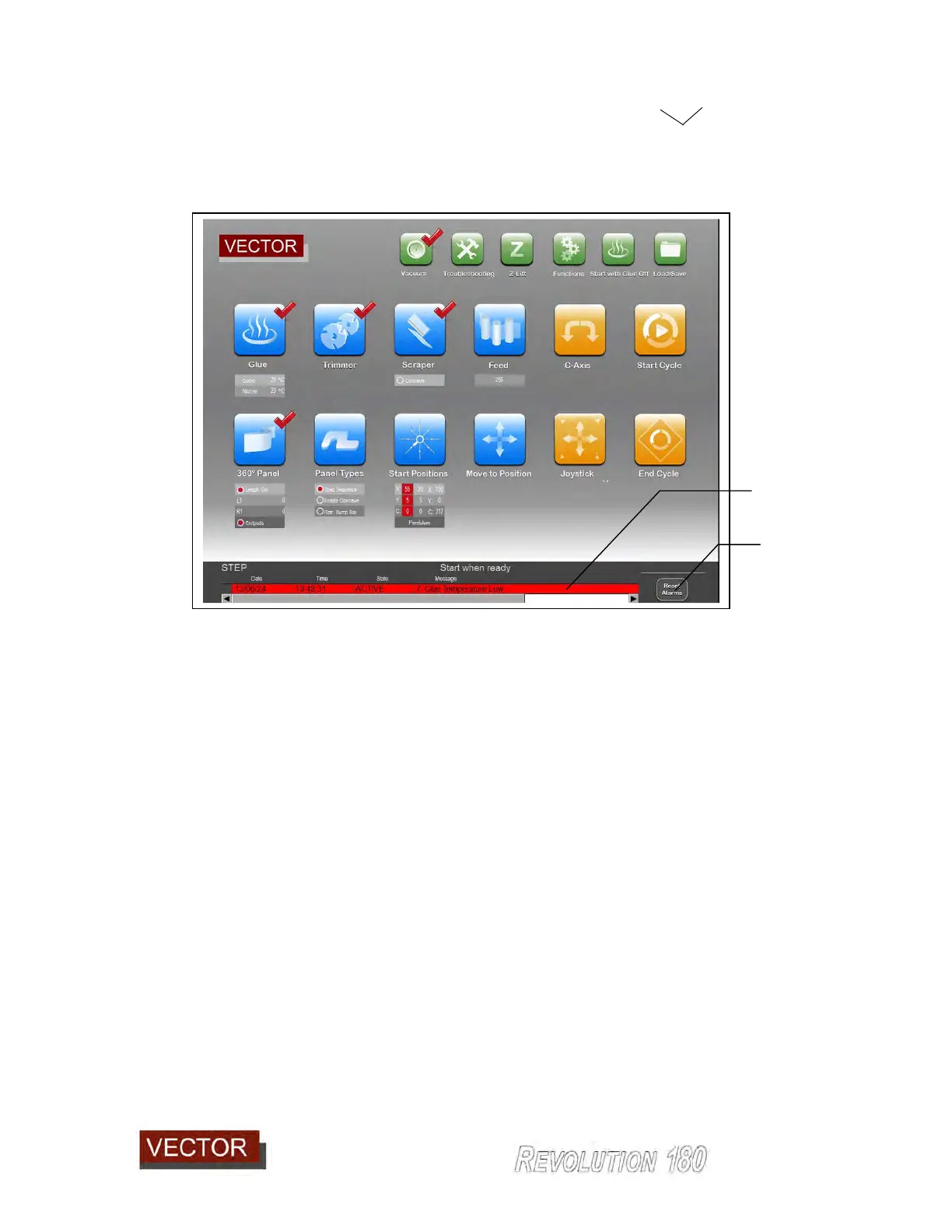

There is an alarm banner (919) at the bottom of most screen pages.
When the cause of the alarm is cleared, in most instances it is required that the RESET
button (974) is pressed to remove the screen alarm message.
Common operation alarms able to resolved by operators are:
Alarm Cause Remedy
Emergency Stop E Stop Circuit broken Reset E stop and/or pullwire
General set required Home machine Press Gen Set (functions page)
Vac fail in cycle Vac status low in cycle Check vacuum pods for leaks
Air Pressure Low Supply air press low. Check supply air
Safety hood not closed Hood open Close hood
Board sensor during z up Head too close to panel Drive clear of panel then z lift
on Z lift
Tape not cut End trim cut not complete Check end trim cutter and travel.
CW limit reached C Axis over limit Re-position panel
CCW limit reached C Axis neg overlimit Re-position panel
Setpoint outside range Start position set issue Re-set start position within limits
Glue temp low Glue heating Auto reset
Load new glue cartridge Glue cartridge low Load new glue cartridge
Clear tape Tape in guide Remove tape from present switch
Z Axis not down Z not completely down Remove obstruction
A more comprehensive alarms list is found in section 11 Troubleshooting
