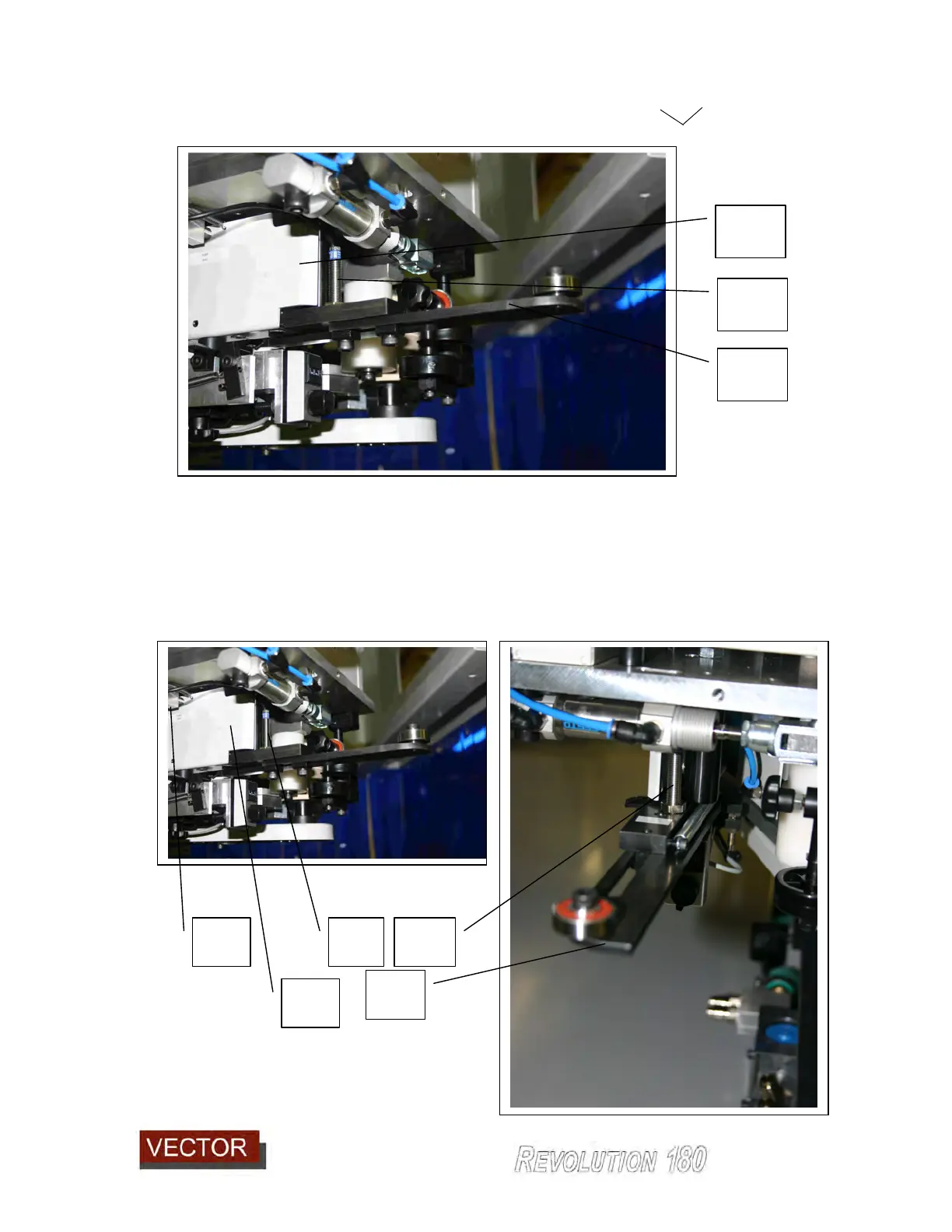

The bump bar/switch mechanism has two motions.
The first is simply to push the bump bar back causing it to release the sensor (915 – bump
bar). This releases the glue station for shallow internal corners.
The second mechanism is when the bump bar/switch is contacted end on causing the end
of the bump bar/switch to slide. This activates the bump switch (914)
914
926
925
915 916 914
926
925
