Vector Revolution 180 - Page 108

Run 9
________________________________________________________________________________________
_______________________________________
9-55

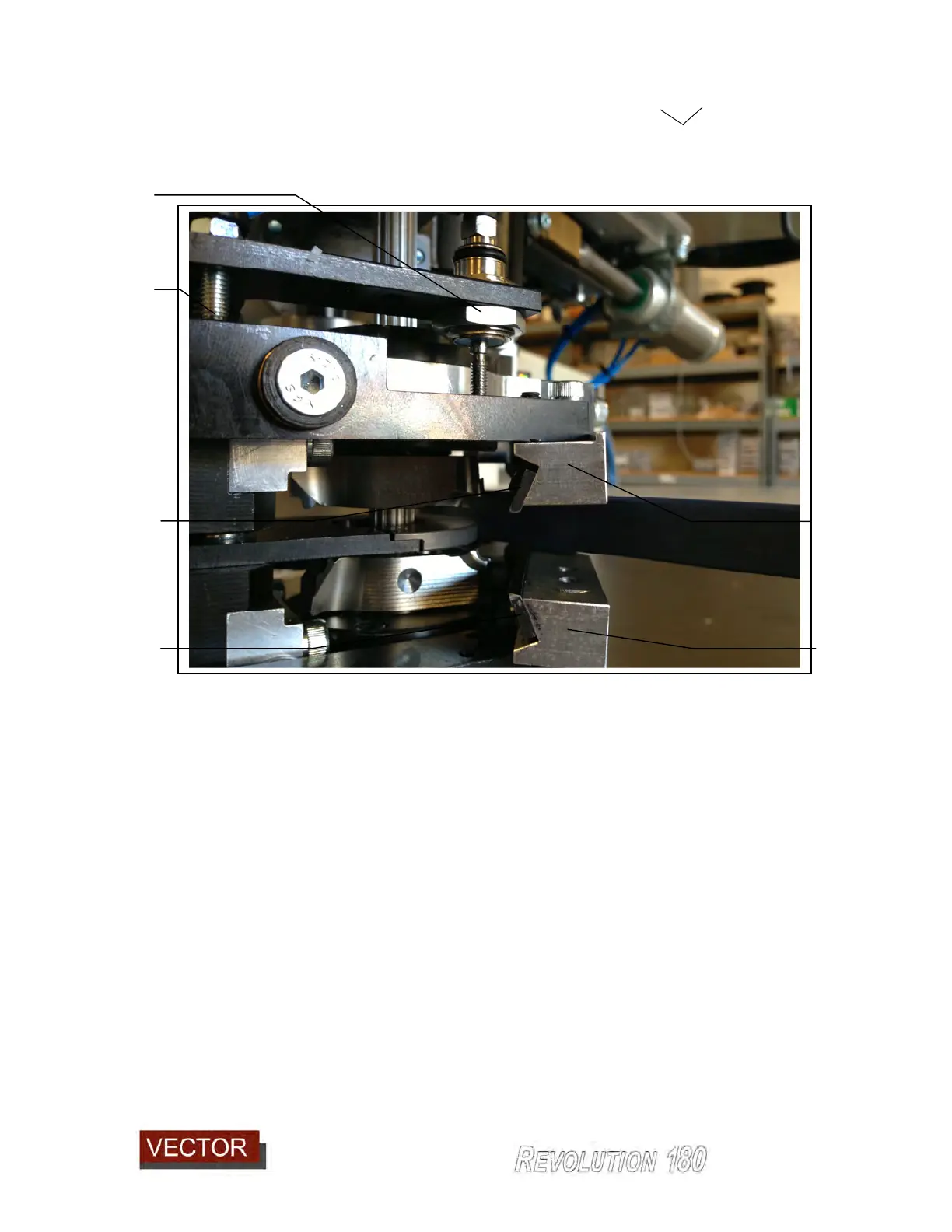

1. Ensure that the travel limiter screw(s) (903) are not preventing the scraper knife
applying pressure to the workpiece. The knife should be able to travel 0.5 – 1mm
past the surface of the workpiece.
2. The pressure for the vertical pneumatic cylinder (902) is controlled by the regulator
(905).
904
904
903
902
906
906
