Care and Maintenance 10
________________________________________________________________________________________
_______________________________________

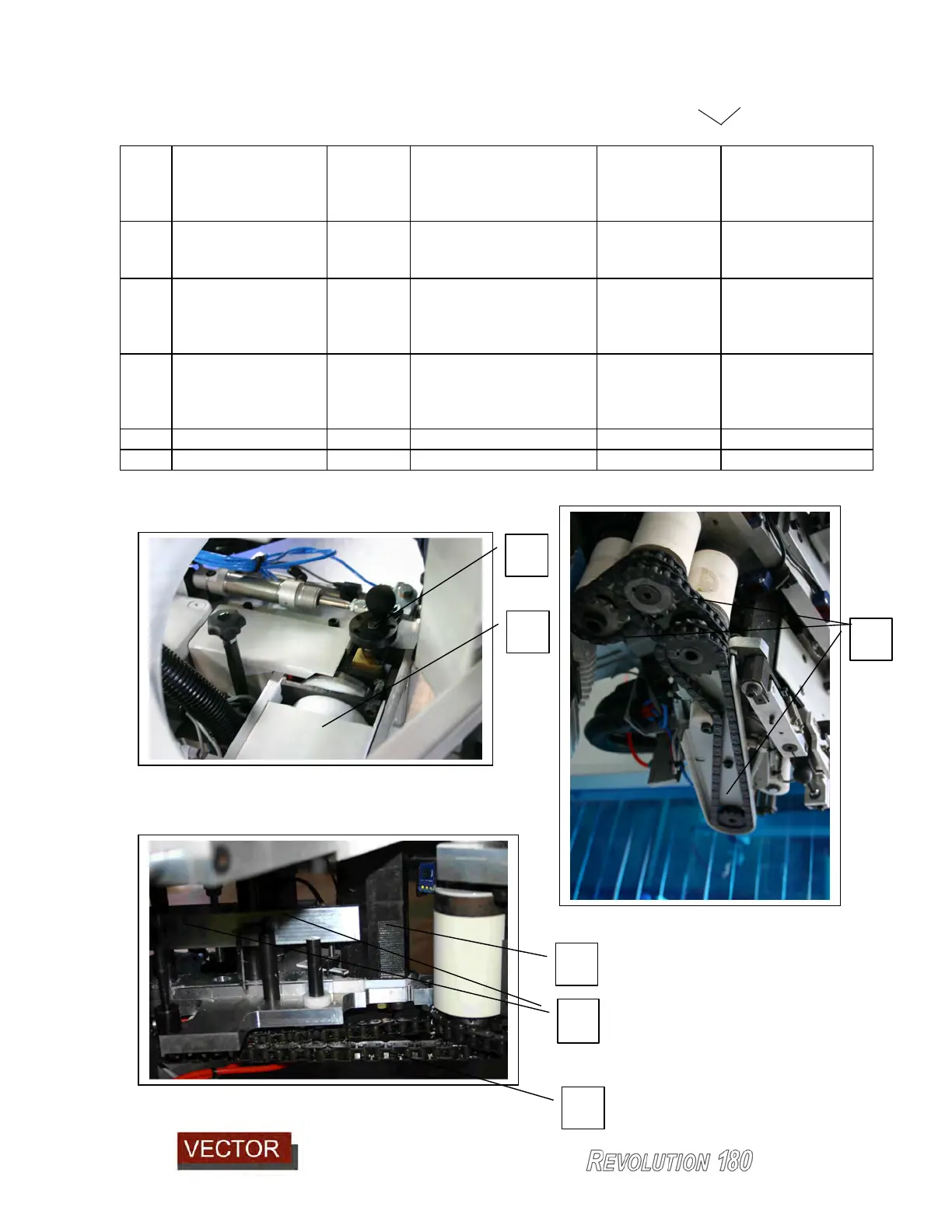

10-3
K
Axis bearings X
axis, Y axis and Z
axis.
160 hrs Lubricate grease
nipples on all 4 linear
motion bearings on
each axis X, Y and Z.
Kluber
ISOFLEX
NBU15
M
Top tape guide 160 hrs Lubricate guide bars
with light oil.
Guide must spring
freely up and
down.
N
Motor Bearings 320 hrs Check for noisy
bearings. Replace as
necessary
Damaged bearings
can cause
premature and
motor failure!
O
Vacuum pump 1000 hrs Full service Castrol Aircol
PD100
Shell Corena
P100
Regular service
P
Gear Motor 1000 hrs Check for noise Unserviceable
NOTES
I
A
G
G
M
A
