Run 9
________________________________________________________________________________________
_______________________________________
9-29

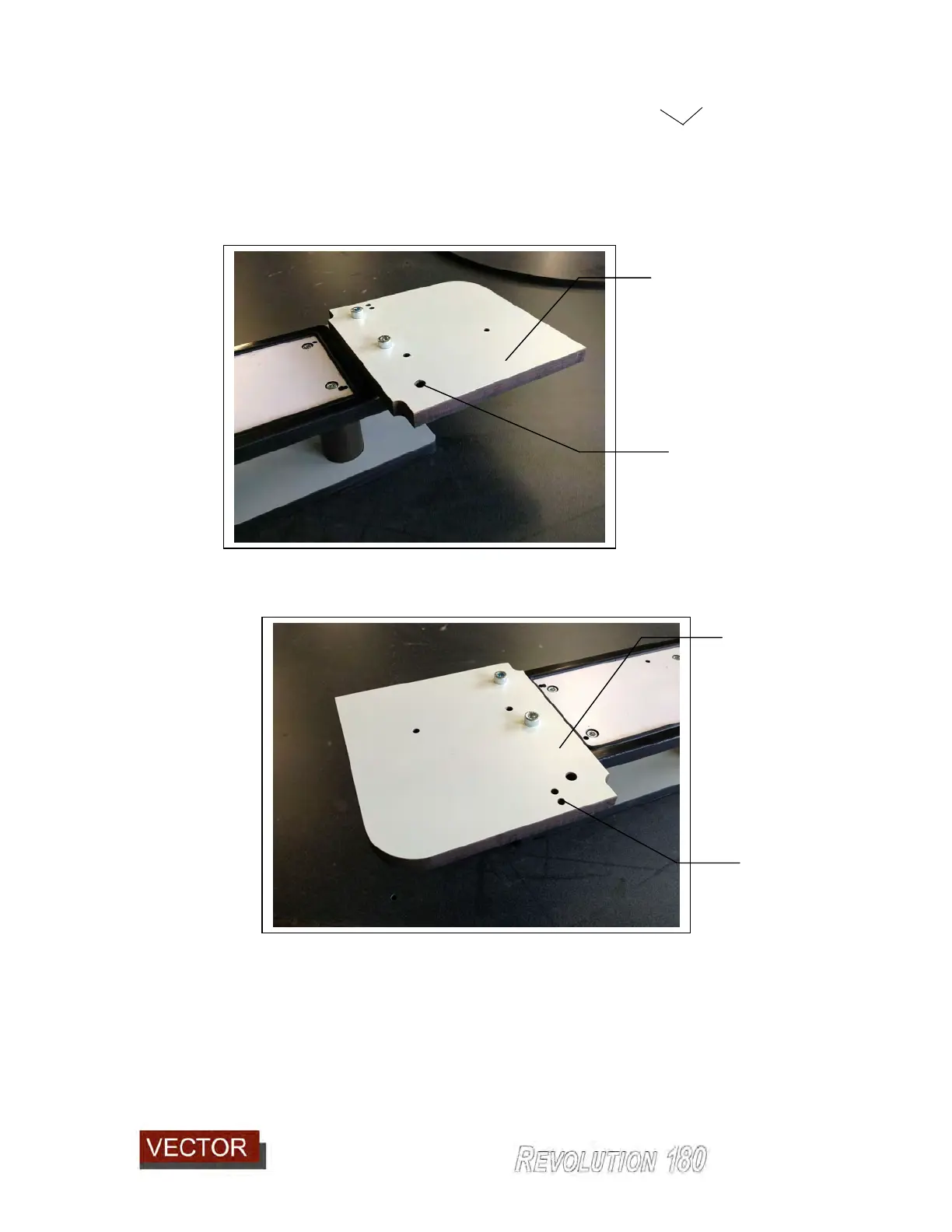

A universal pod plate (963) can be fitted to these pods to act as a Start of Finish pod in
most circumstances. The universal single piece pod plate is 16mm thick. It can be used
as a pattern to make pod plates of different thicknesses.
It is shown here positioned as a Start block.
The same plate can be shifted laterally utilising the 3
rd
8 diameter hole (964) so it can be
fitted as a Finish Plate.
See below
The tapped hole (965) is for the trigger pin (966) which can be screwed in from below.
This pin is used to sense the end point for the banding when in Non-360 mode when not
using the Auto Length cut function. See later in this section
963
964
963
965
