Service And Repair Replacing the Packer-to-Manifold Wiring Connectors
41

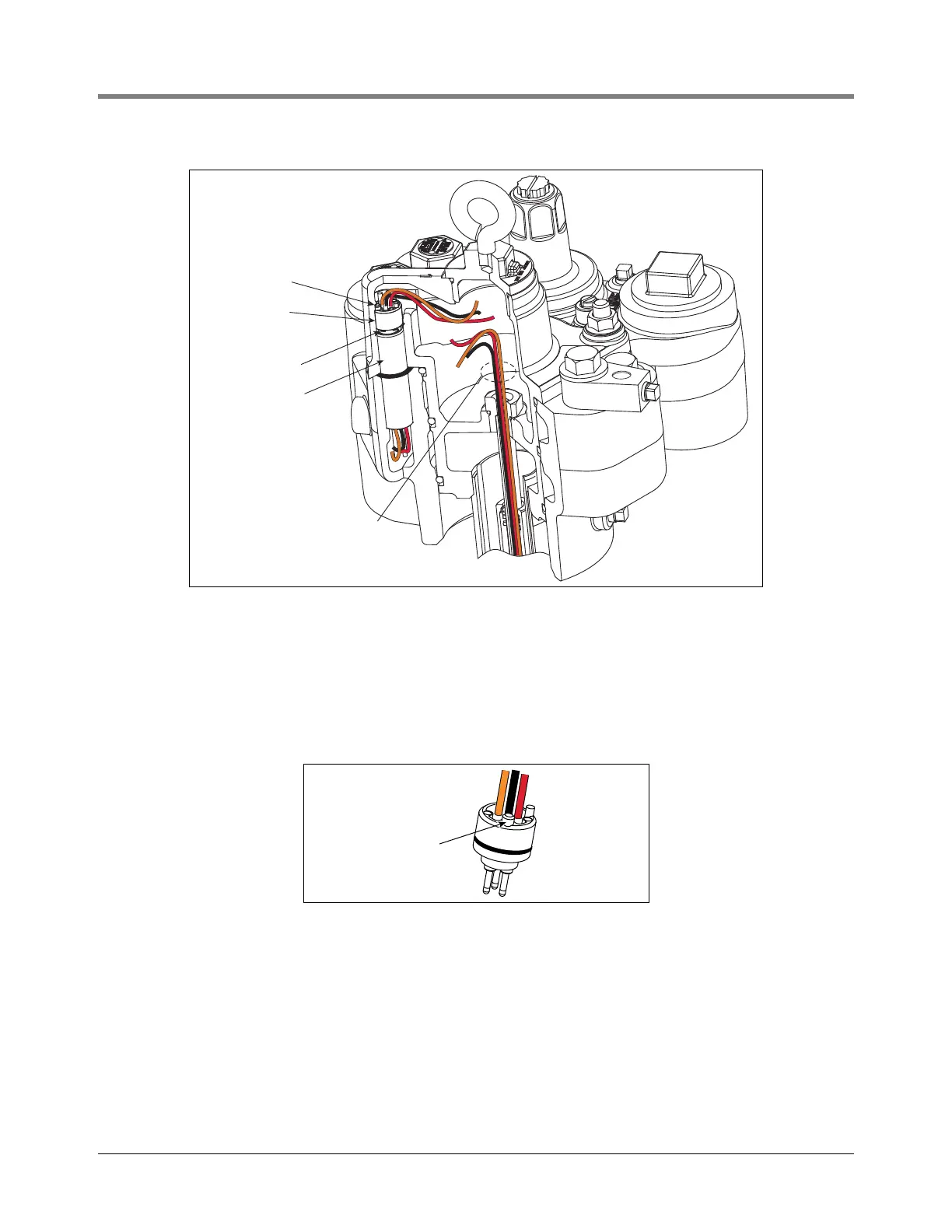

Figure 32. Packer-To-Manifold Wiring Connectors
7. Use a pair of needle-nose pliers or long-nose locking pliers to remove the retaining washer that holds the male
connector in its socket.
8. Remove the male connector with O-ring.
9. Get the new male connector and retaining washer from the electrical connector kit.
10. Notice the small indexing pin on the back of the male connector (see Figure 33).
Figure 33. Male Connector’s Indexing Pin
11. The indexing pin on the back of the connector must seat in the index hole in the base of the male connector’s
socket (see Figure 34) for the connector to be correctly oriented relative to the female connector.
Male connector
Male connector's
retaining washer
Female connector
rjpumps/fig42.eps
Male connector's
indexing pin
Wiring to UMP
Indexing pin
045-1
