POS App Guide DIM Installation Examples
46
Typical Wiring for Meter Stand Applications

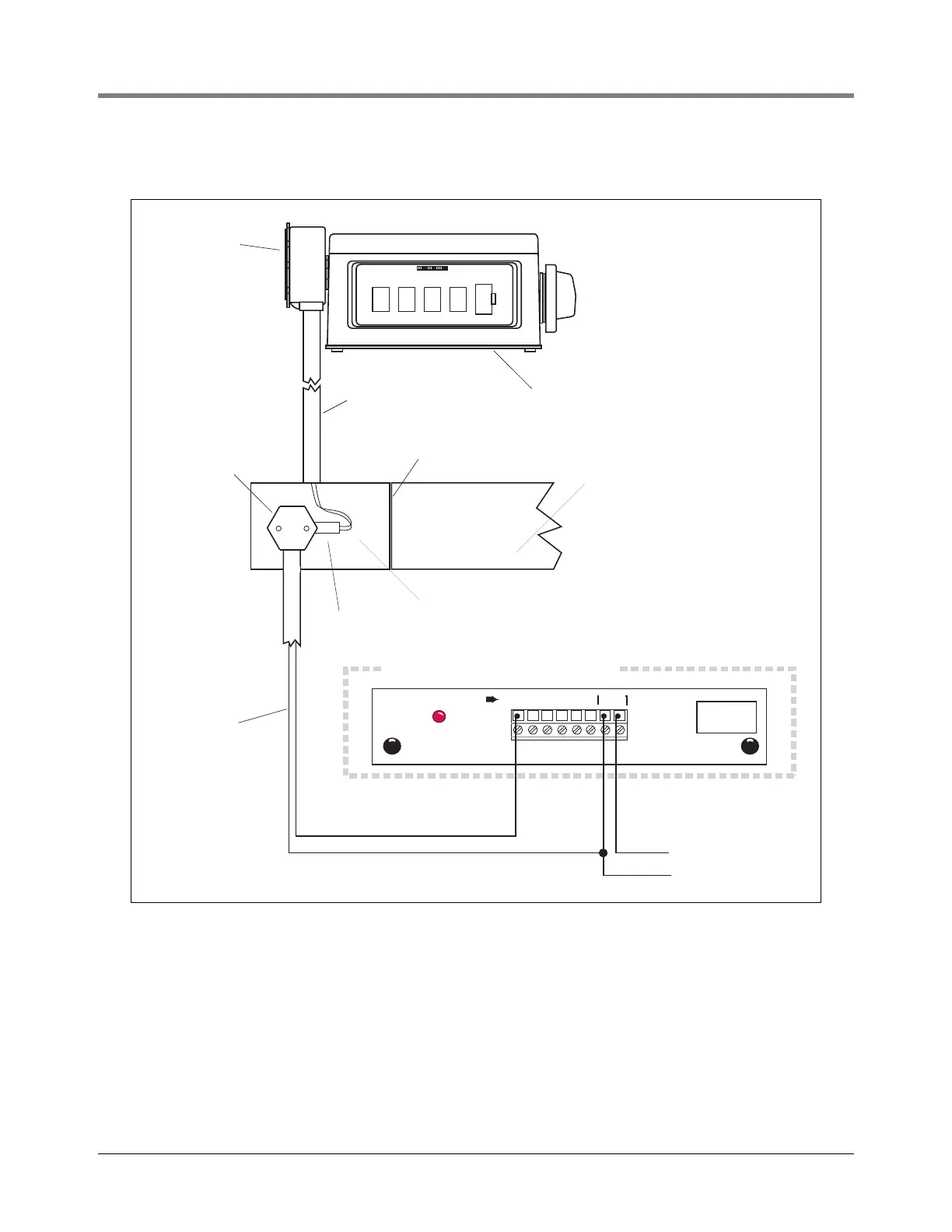

Figure 27. TLS-350 Meter Stand Application Using 1871/7697 Series Pulser/Totalizer
GALLONS
769780-008
Pulse Transmitter
Metal Divider Plate
Barrier
No. 7859
"J" Box
Explosion Proof
Low Voltage Area
Orange White
401-30.eps
Black
115 Vac Line (BLK)
Metal Conduit
V
00000
#14 AWG
(7 x 36 Stranded Wires,
Gas & Oil Resistant)
Meter Register
Neutral (WHT)
Typical Electric
Wiring Trough
MECHANICAL DISPENSER INTERFACE MODULE
INPUT RATING
120 VAC
.15 AMP MAX
P1 P2 P3 P4 N L1
PULSER
120 VAC
MDIM in Power Bay of TLS-350R Console
