Veeder-Root TLS-450PLUS Install, Setup, & Operation Manual

12
Setup Device Setups
VAPOR VALVE SETUP - ONLY FOR VEEDER-ROOT POLISHER
1. Touch Vapor Valve in the Menu>Setup>Devices list (Figure 10) to open the Vapor Valve setup screen
(Figure 11)

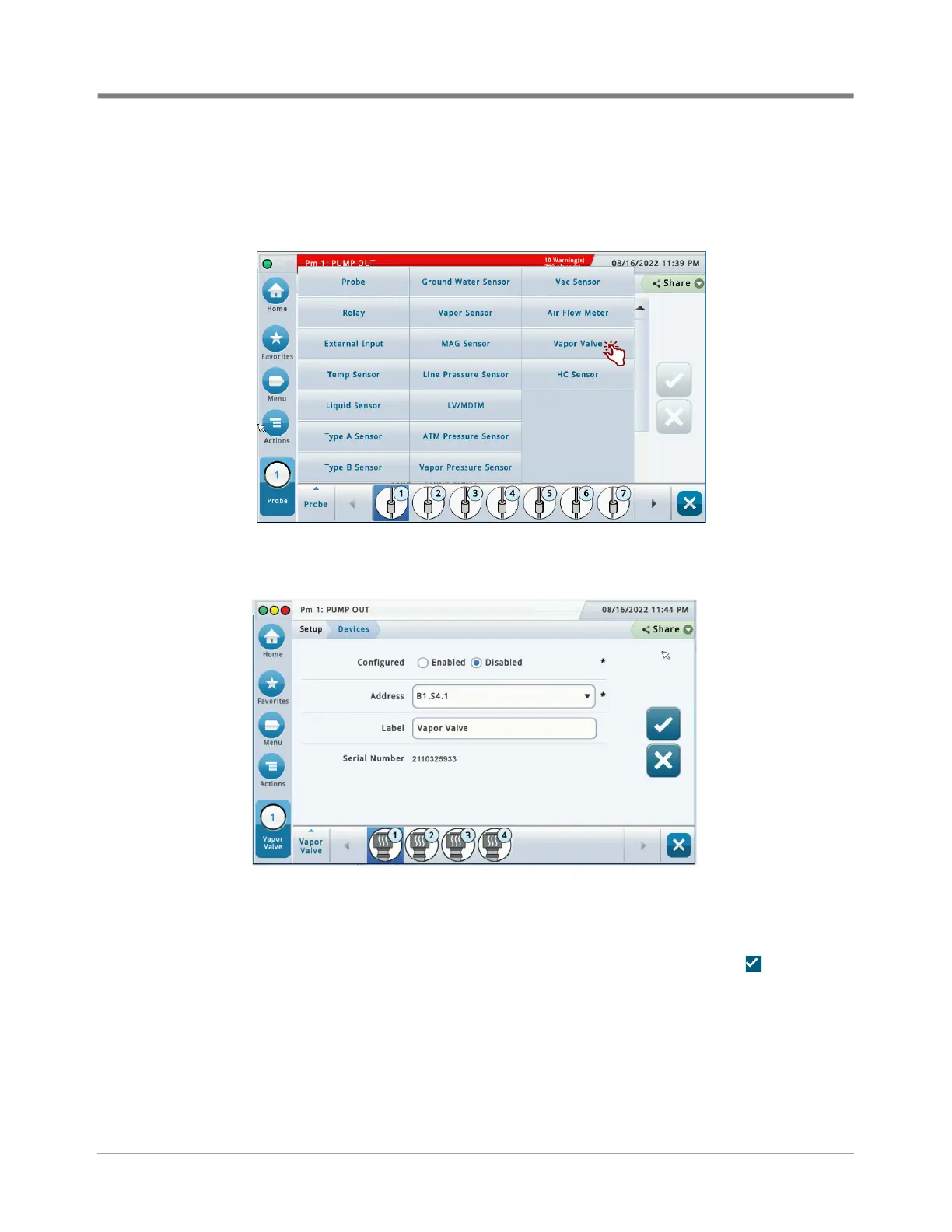

Figure 10. Accessing Vapor Valve Setup Screen
Figure 11. Example Vapor Valve Setup Screen
2. Touch the Address drop-down box and select the address of the Vapor Valve. Touch the Label field and enter
the label text for the Vapor Valve on the keypad (e.g., Vapor Valve) then touch the green check button to accept
the label. Touch the Enabled radio button to configure the Vapor Valve. Touch the check button to save your
choices. Notice after saving, the Serial Number of this Vapor Valve is now visible
