Operations Viewing ISD Reports via RS-232 Connection
To avoid attaching your Comm cable to a non-configurable (NC) port, identify the
configurable (C) RS-232 ports by referring to Table 8.
SETTING UP THE TLS-450PLUS SERIAL PORT FOR ISD REGULATOR ACCESS
1. On the TLS-450PLUS touch Menu>Setup>Communication>Serial Port. Use the required ISD dedicated
Comm port, e.g., select serial port 3 (Figure 100).

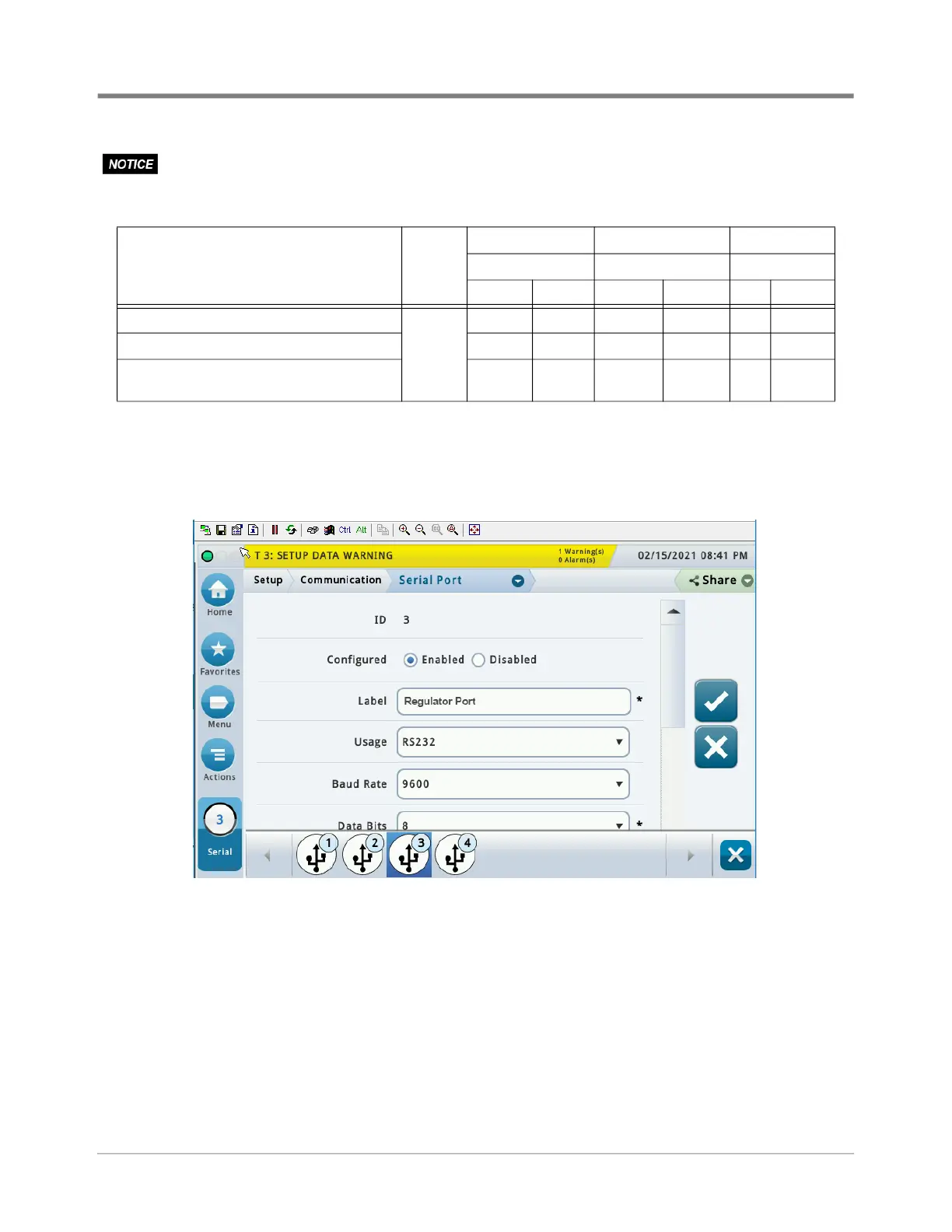

Figure 100. Example Serial Port Setup Screen
Table 8. Selectable Comm Module Permissible Slots And Port Availability
Comm Module
Comm
Type
Slot 1 Slot 2 Slot 3
Port Port Port
1 2 1 2 1 2
RS-232 Single Port
Serial
NC C NC C NC C
RS-232 Dual Port C C C C NC C
RS-232/RS-485 Dual Port
C
(RS-232)
C
RS-485
C
(RS-232)
C
(RS-485) NC
C
(RS-485)
