Veeder-Root TLS-450PLUS Install, Setup, & Operation Manual

69
Operations Viewing ISD Reports via RS-232 Connection
If using a USB to DB9 Serial adapter cable (P/N 576040-170), or equivalent, you will need to follow the in-
structions shipped with the adapter cable.
2. Select an available RS-232 Comm port on the TLS-450PLUS Comm cage (see Figure 98).

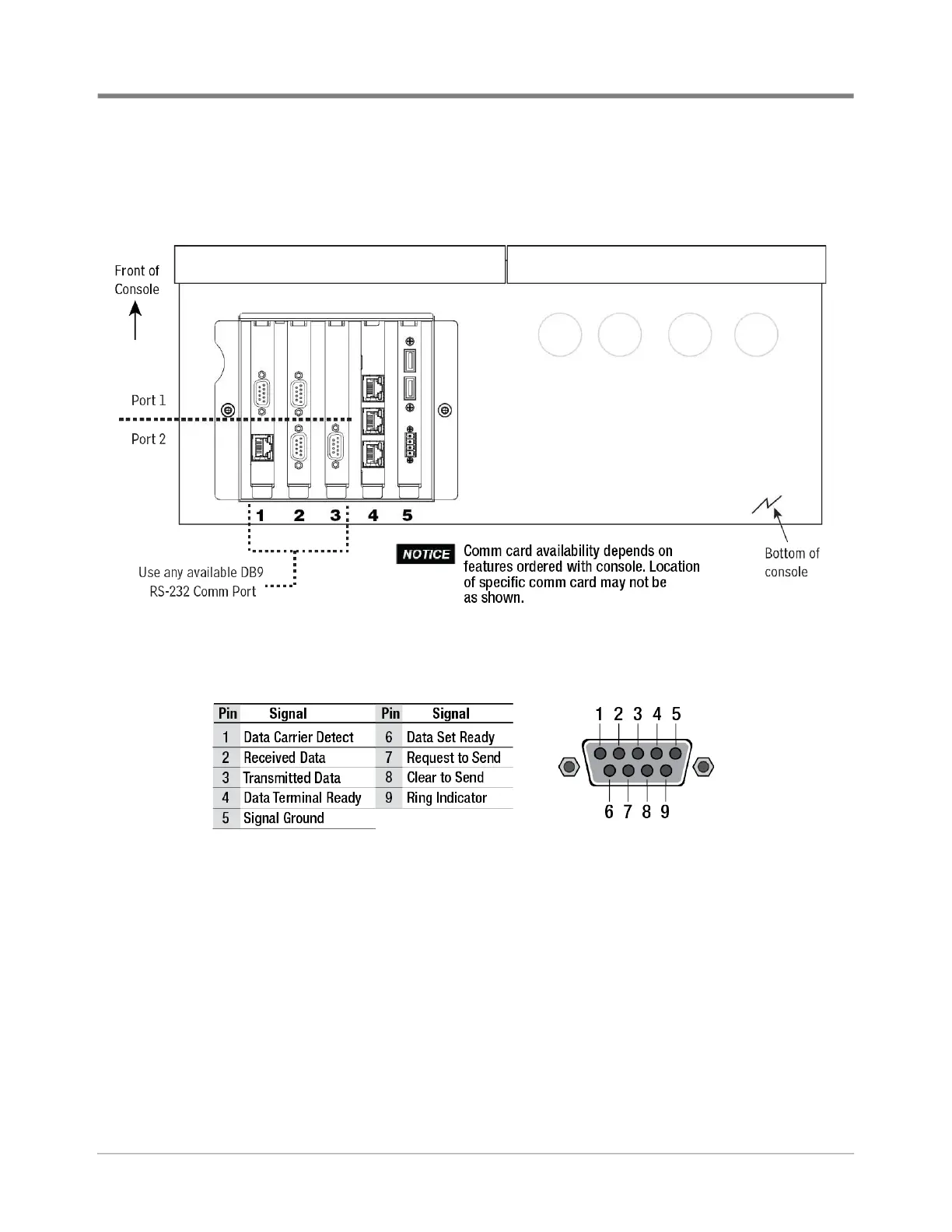

Figure 98. Connect Laptop to an Available RS-232 Comm Port
3. The TLS-450PLUS RS-232 connector pin outs are shown in Figure 99.
Figure 99. TLS-450PLUS RS-232 Connector Pin Outs
