Setup Vapor Recovery Setup

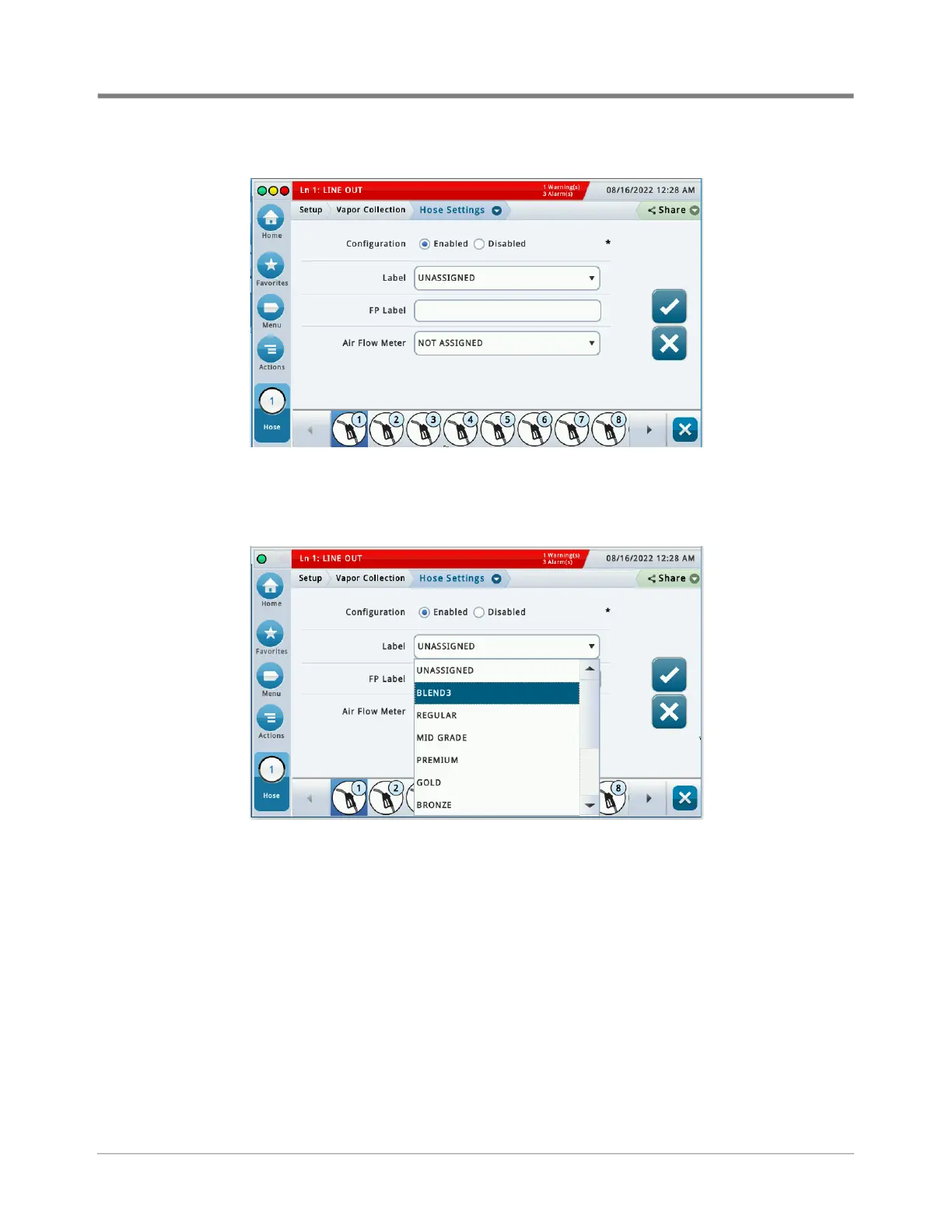

Figure 21. Vapor Collection Hose Settings Setup Example
3. Touch the drop-down arrow in the Label field and select the Hose Label from the list (see Figure 22).
Figure 22. Vapor Collection Hose Settings Setup Example
4. Enter the FP Label number for this hose that is located on the dispenser (see Figure 24).
