Diagnostics PMC Status - Veeder-Root Polisher

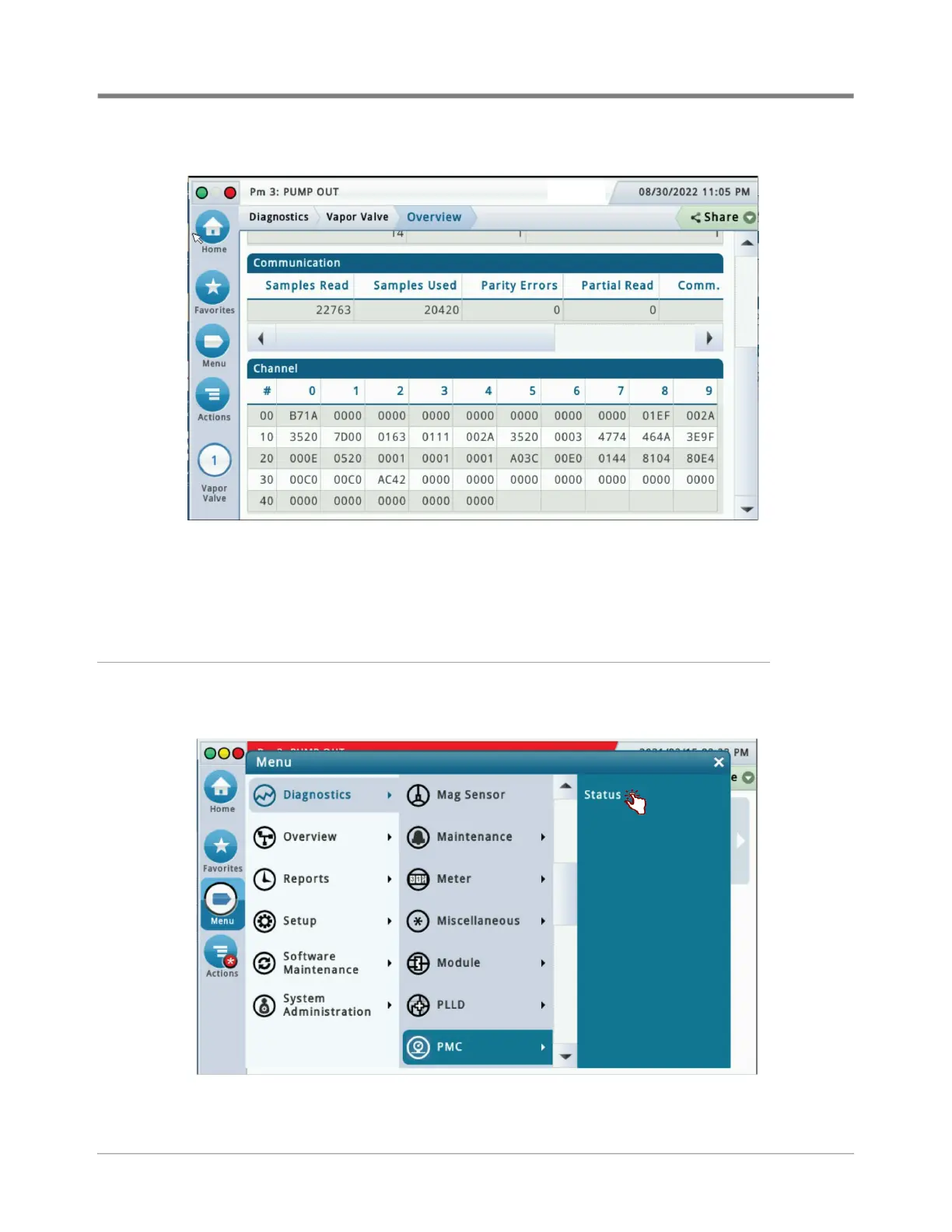

Figure 67. Vapor Valve Overview Screen - Page 2

3. Touching Actions>Help opens the Online Help to view descriptive information about the data in the tables for

this device.

PMC Status - Veeder-Root Polisher

Touch Menu>Diagnostics>PMC>Status (Figure 68) to open the PMC Status screen (Figure 69).

Figure 68. Accessing PMC Status Diagnostic Screen

Table of Contents5
Site Requirements9
Supported Vapor Recovery Systems10
Contractor Certification Requirements10
Related Manuals11
Safety Precautions11
Example Site Diagrams12
Figure 1. Example Site Diagram - TLS Console Controlled12
Gasoline Pump and Line Requirements13
ISD Shutdown Requirements13
Setup Introduction14
Date/Time Setup14
Figure 2. Date and Time Setup Screen14
Device Setups15
Air Flow Meter Setup15
Figure 3. Accessing Device Setup15
Figure 4. Accessing Air Flow Meter Setup Screen15
Figure 5. Air Flow Meter Setup Screen16
Atmospheric (ATM) Pressure Sensor Setup - with Veeder-Root Polisher Installation Only17
Figure 6. Accessing ATM Pressure Sensor Setup Screen17
Vapor Pressure Sensor Setup18
Figure 7. ATM Sensor Setup Screen18
Figure 8. Accessing Vapor Pressure Sensor Setup Screen19
Figure 9. Vapor Pressure Sensor Setup Screen19
Vapor Valve Setup - Only for Veeder-Root Polisher20
Figure 10. Accessing Vapor Valve Setup Screen20
Figure 11. Example Vapor Valve Setup Screen20
Vapor Recovery Setup21
Vapor General Setup21
Figure 12. Example Vapor Valve Completed Setup Screen21
Figure 13. Accessing Vapor General: General Screen21
Vapor Collection Setup22
Figure 14. Vapor General: General Setup Screen22
Figure 15. Accessing Vapor Collection Setup Screens22
General23
Figure 16. Example Vapor Collection General Setup Screen23
Hose Labels24
Figure 17. Accessing Vapor Collection Hose Labels Setup Screens24
Figure 18. Vapor Collection Hose Labels Setup Screen24
Hose Settings25
Figure 19. Accessing Vapor Collection Hose Settings Setup Screen25
Figure 20. Vapor Collection Hose Settings Setup Screen25
Figure 21. Vapor Collection Hose Settings Setup Example26
Figure 22. Vapor Collection Hose Settings Setup Example26
Figure 23. Vapor Collection Hose Settings Setup Example27
Figure 24. Vapor Collection Hose Settings Setup Example27
Hose Mapping - Assisted Mode29
Hose Mapping - Manual Mode33
Vapor Management36
Processor36
Automatic Events Setup: (Shutdown Requirements (ISD)38
Pump Mode Setups38
Automatic Events: (Pump Mode = TLS Pump Control)38
Pump Mode = TLS Pump Control38
Automatic Events: (Pump Mode = Pump Sense)40
Pump Mode = Pump Sense40
Automatic Events: (Pump Mode = External Pump Control)43
Single CARB EVR/ISD Setup Printout45
Diagnostics47
ISD Device Diagnostic Screens47
Air Flow Meter Overview47
Atmospheric Sensor Overview - Veeder-Root Polisher Only49
Vapor Pressure Sensor Overview50
Vapor Valve Overview - with Veeder-Root Polisher Only52
PMC Status - Veeder-Root Polisher53
Automatic Mode54
Manual Mode54
Switching between Vapor Processor Modes54
Vapor Monitor - Clear Test after Repair55
Example Procedure55
Vapor Monitor - Hose Events58
ISD Operability Test Procedures61
Vapor Pressure Sensor Verification Test61
Vapor Flow Meter Operability Test61
Readiness/Function Code62
Report Access Printing63
Alarms64
Alarm Messages64
Warnings64
Failures64
Restarting Station after ISD Shutdown Alarms64
Alarm Logs65
Alarm Sequence65
ISD Alarm Summary66
Other Alarms67
Reports69
Viewing and Printing CARB Daily Report70
Viewing and Printing CARB Monthly Report72
Viewing and Printing Daily Collection Report73
Viewing and Printing Daily Containment Report74
Viewing and Printing Status Events (Monthly) Report75
Viewing ISD Reports Via RS-232 Connection76
Connecting Laptop to TLS-450PLUS76
Setting up the TLS-450PLUS Serial Port for ISD Regulator Access78
Setting up Communication between Laptop and TLS-450PLUS80
Sending Console Commands81
Appendix A: Site EVR/ISD Equipment Location Worksheet90
Single-Hose Fueling Position Dispensers90
Multi-Hose Fueling Position Dispensers93
