Special Mag Probe Installation Kits Riser Cap Kit for Mag Probe Installations

Riser Cap Kit for Mag Probe Installations

The cap on the riser containing the Mag Probe must be modified to allow the probe’s cable to exit the riser. This

modification requires making a 1/2”-14 NPT tapped hole in the cap for a cord grip. Two types of drilled and

tapped Riser Cap kits are available for purchase, or you may be able to modify the existing riser cap.

CAP AND CORD GRIP KIT

This Riser Cap kit (Table 2) contains a plastic cap which screws onto the 4-inch NPT riser (Figure 9). The cap

comes drilled and tapped with a cord grip.

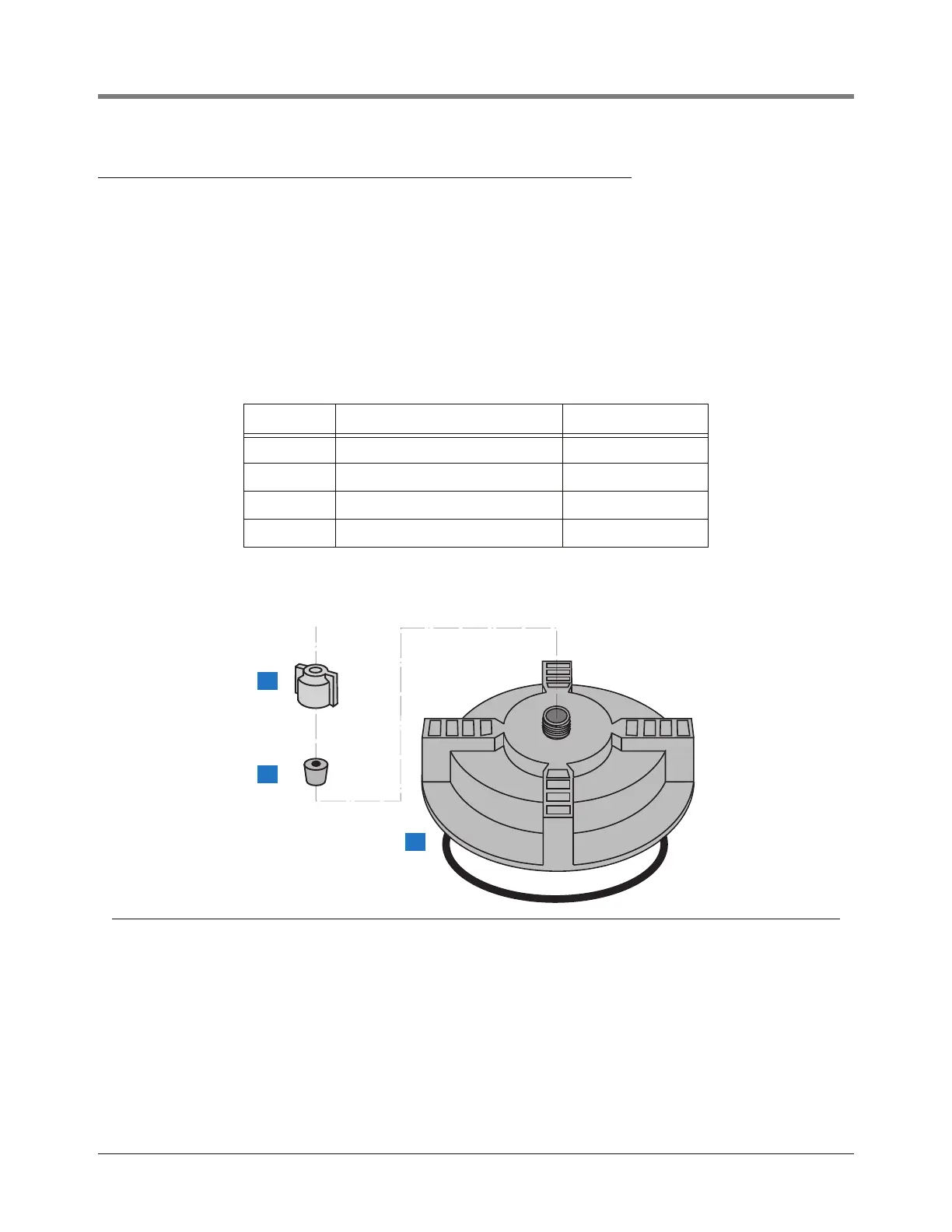

Figure 9. Cap and Cord Grip Kit

Table 2. Cap and cord grip kit - Part No. 330020-282

Quantity Description Part Number

1 Plastic Riser Cap 331106-001

1 Gasket 331140-001

1 Bushing - Cord Grip 330787-001

1 Nut - Cord Grip 330594-001

Legend for numbered boxes

1 Cord grip nut

2 Cord grip bushing

3 Riser cap and gasket
