Special Mag Probe Installation Kits Riser Cap Kit for Mag Probe Installations

METAL CAP AND RING KIT

This riser cap kit contains a metal ring which screws onto the 4-inch NPT riser and a quick-release metal cap

which clamps onto the ring (Table 3). The cap comes drilled and tapped with a cord grip (Figure 10).

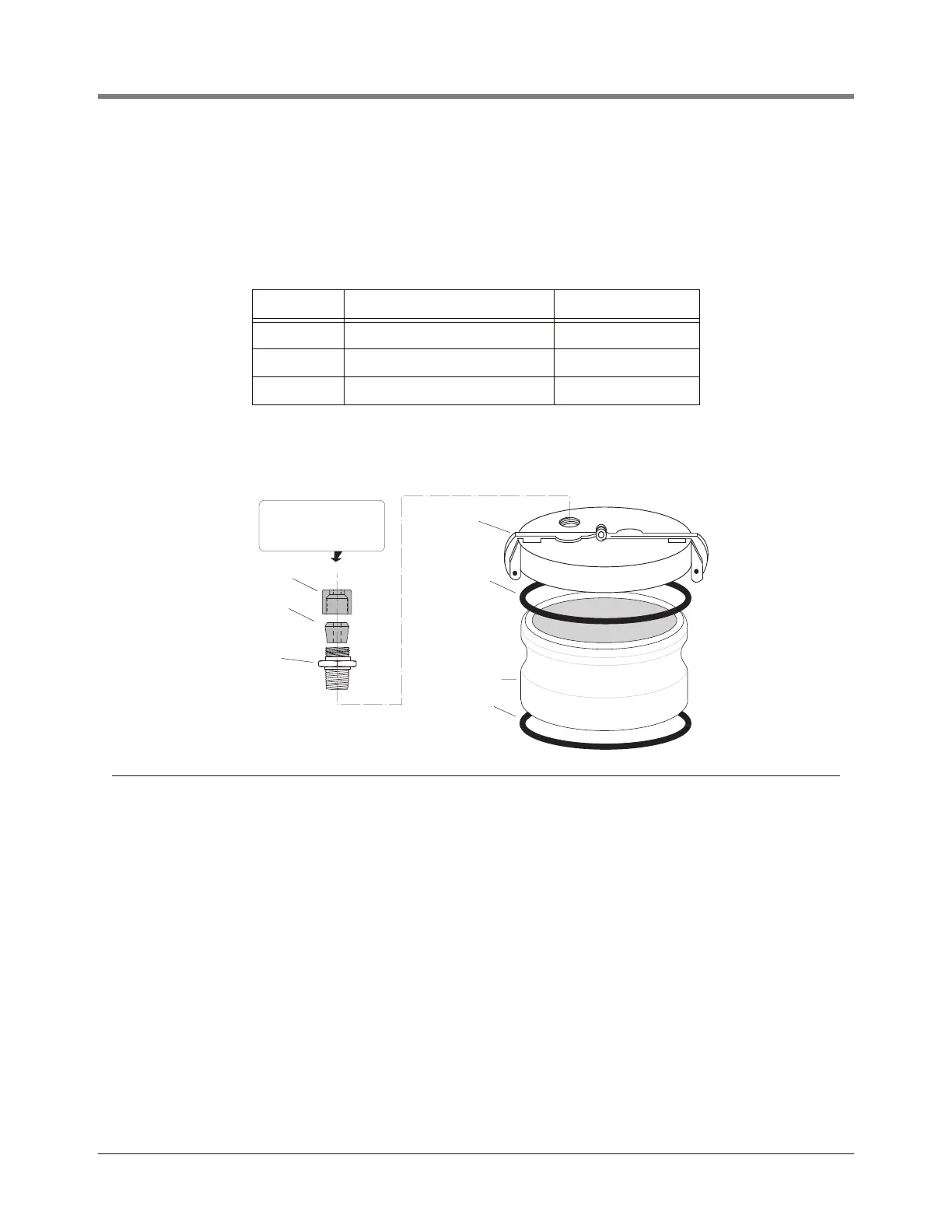

Figure 10. Metal Cap and Ring Kit

Table 3. Metal Cap and Ring Kit - Part No. 312020-952

Quantity Description Part Number

1 Ring Adaptor and gasket 514100-332

1 Cap and gasket 327869-003

1 Group Cord Grip 331028-001

Legend for numbered boxes

1 Cord grip assembly

2 Metal cap w/ tapped hole for cord grip

3 O-ring cap gasket

4 Metal ring

5 O-ring gasket

Cord Grip Fitting

Body

Cord Grip

Nut

Adapter ring

Cap gasket

Metal cap

w/1/2" NPT

tapped hole

Note: watch orientation

of bevels and tapers

when assembling these

cord grip components.

Bushing

Ring gasket
