Mag Probe Assembly Attaching Cable Connector to Probe Canister
19

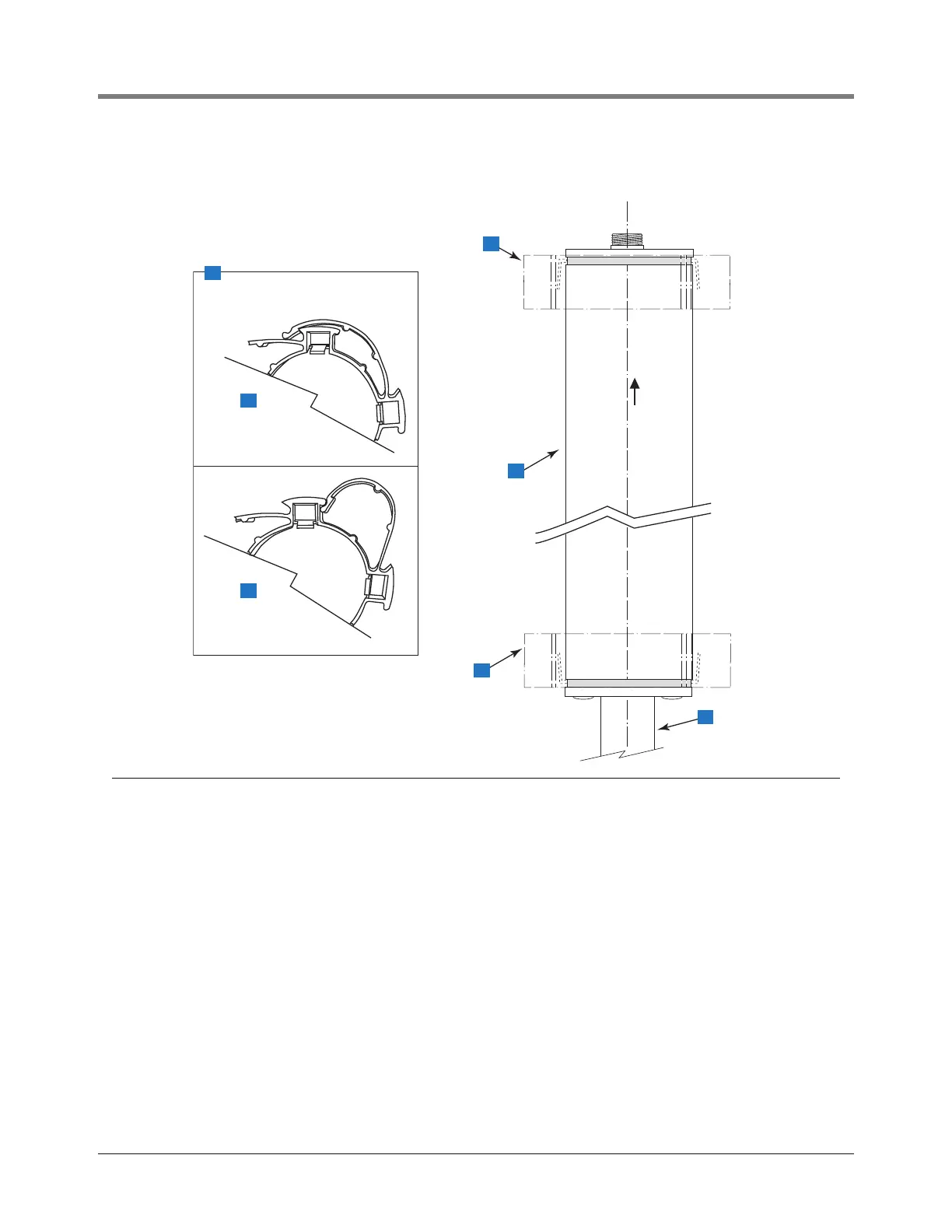

Figure 12. Installing Probe Canister Spacer Rings for 3- & 4-inch Risers
Legend for numbered boxes
1 After setting arms (see insert) install top spacer ring. Orient locking tabs as shown, and then slide ring over top of canister
until tabs snap into groove in canister.
2 Probe canister
3 After setting arms (see insert) install bottom spacer ring. Orient locking tabs as shown, and then slide ring up over probe
shaft and onto bottom of canister, until tabs snap in groove.
4 Probe shaft
5 Spacer Ring Settings
6 For 3"riser - set 4 spacer ring arms as shown.
7 For 4"riser - set 4 spacer ring arms as shown.
To Next Page
