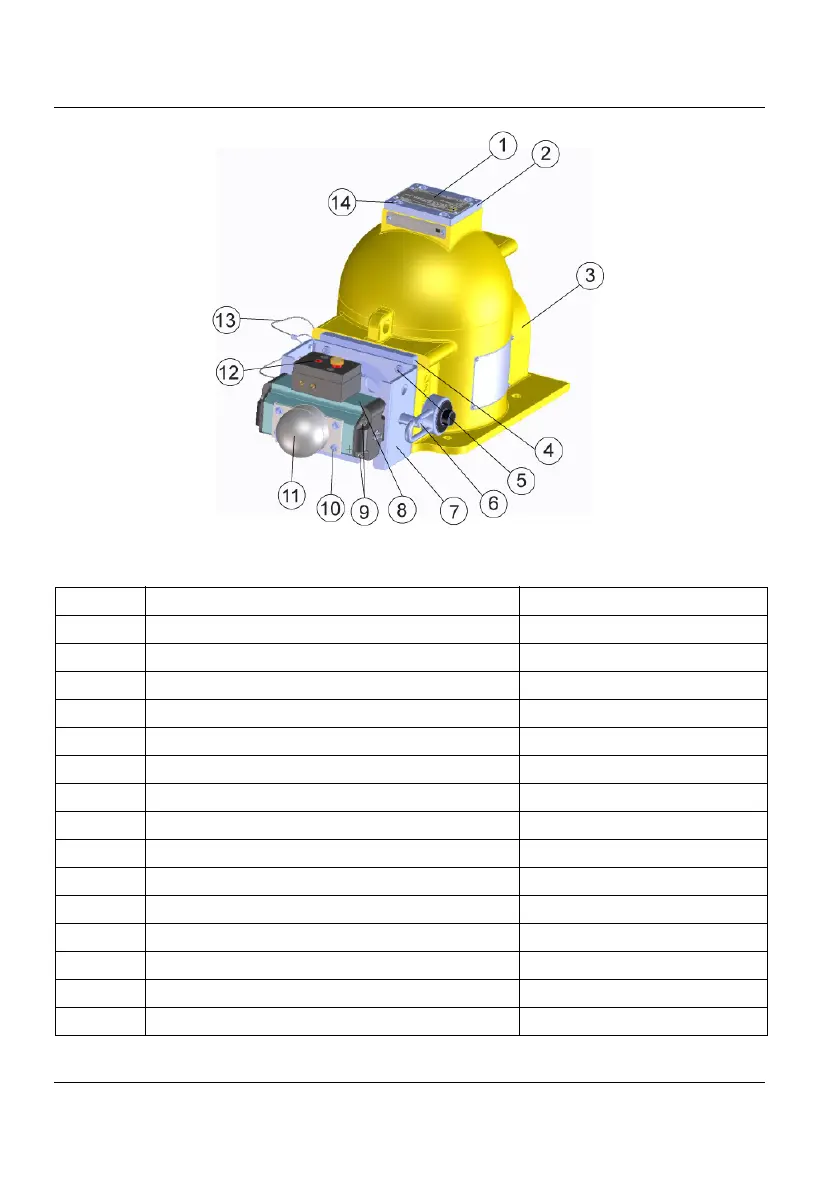

Figure 9.4
SHLD2 Source Holder - Air Actuator
Number Component Material
1 Type Label - Source 316
2 Cover Plate 316
O-ring FKM
3 Housing 316
4 Bearing Flange 316
5Screw 316
6 Locking Rod 316
7 Bracket, Air Actuator 316
8 Housing, Air Actuator Aluminum, Anodized
9Screw 316
10 Screw 304
11 Indication of Switching Position Polycarbonate
12 Air Connection Aluminum, Anodized
13 Safeguard Cable 304, Plastic-coated (Vinyl)
14 Screw (torx tamper-resistant) 316
