5 Connecting to power supply
VEGAPULS 21 • Two-wire 4 … 20 mA/HART
58351-EN-191014

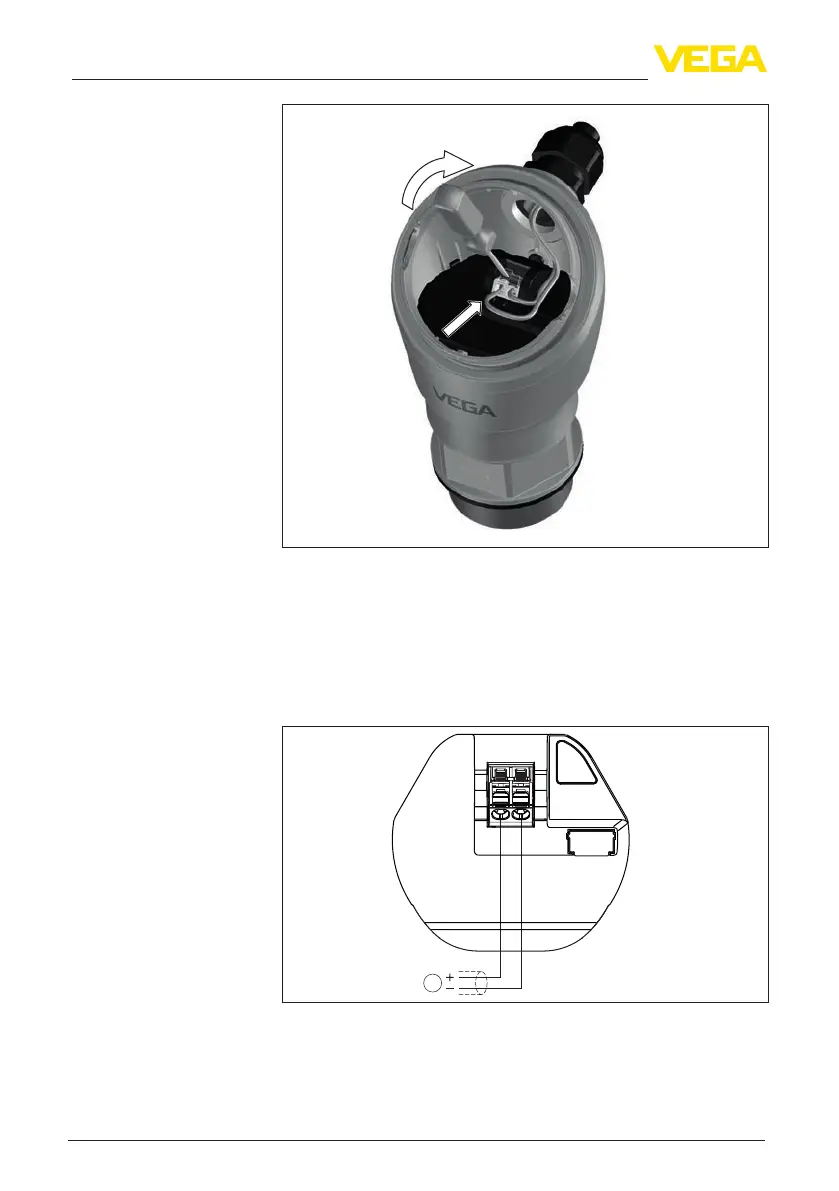

Fig. 17: Connection
Youcanndfurtherinformationonthemax.wirecross-sectionunder
"Technical data - Electromechanical data".
Connect the instrument as described in the following wiring plan.
5.3 Wiring plan
(+)1 2(-)
1
Fig. 18: Connection compartment VEGAPULS 21
1 Voltagesupply,signaloutput
Connecting
Electronics and connec-
tion compartment
