TD-6
Part #1169256 09/2008
12
6
9
8
10
11
7
6
5
4
3
2
1
13
ITEM
NO
DESCRIPTION QTY
REQ
PART NO.
1 BRKT, SECURITY, LOCK 1 1143402
2 T-HANDLE 1 1002392
3 PIN - STUD 1 387601
4 LOCK STUD - QUICKER LOCK 1 1049724
5 SPRING 1 389691
6 E-RING RETAINER 3 388589
7 HEX WASHER 1 387600
8 SPRING - HEAVY 1 389691
9 FLAT WASHER 1 387718
10 T-HANDLE - FLANGE 1 1002384
11 VAPOR SEAL 1 388132
12 WASHER 1/2” 2 V801023
13 1/4” X 3/4” CARRIAGE BOLT 1 1052619

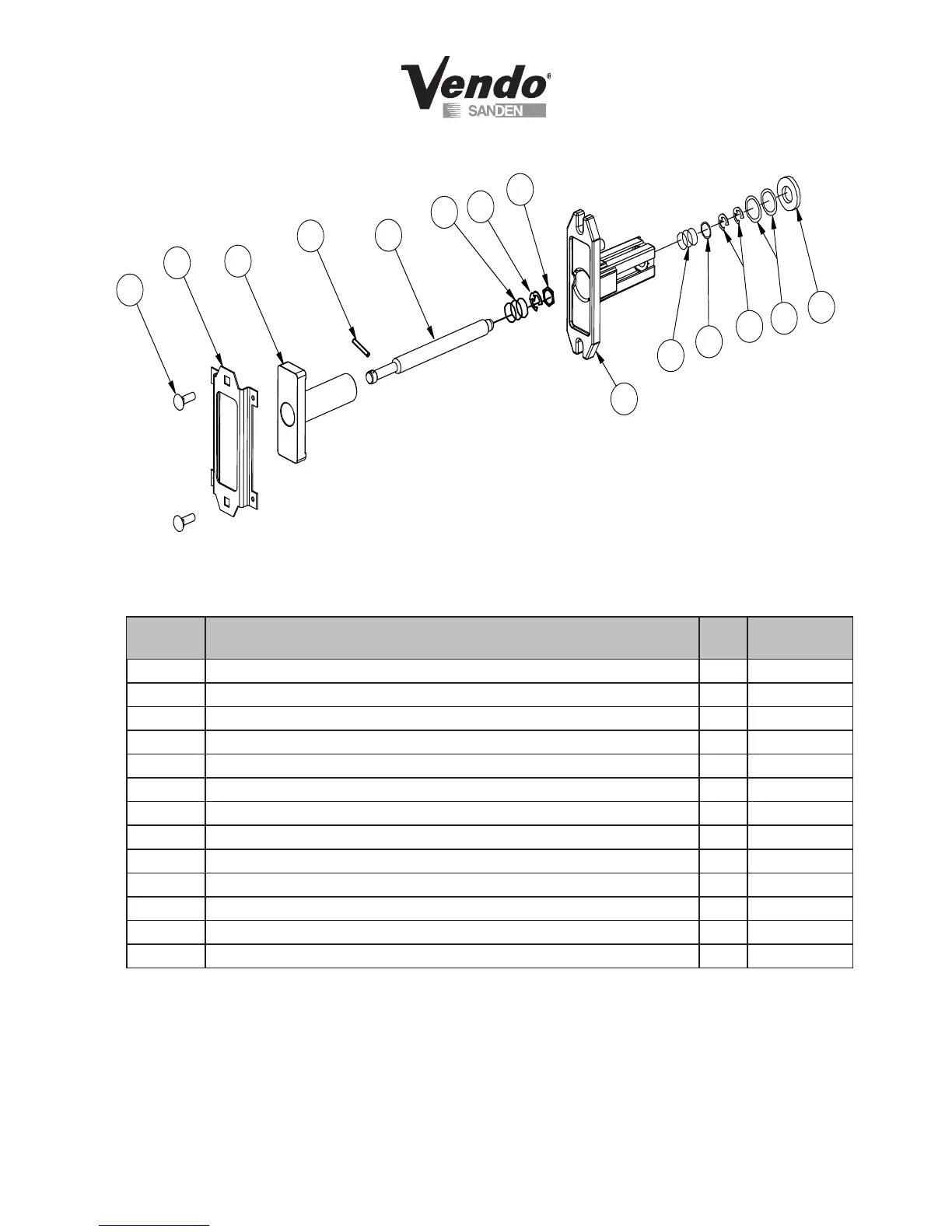

CHAMELEON TRADE LOCK ASSEMBLY
