VERDEGRO Blade - Side Guards Junction Boxes

Page 28 of 68
Operation and maintenance manual Verdegro Blade
5.2.2 Side Guards Junction boxes:
The side guards junction boxes can be found under the fourth side guard from the main
chassis. Unlock the screws holding the side guards to remove the side guards, the cover
can be taken off by a screwdriver.

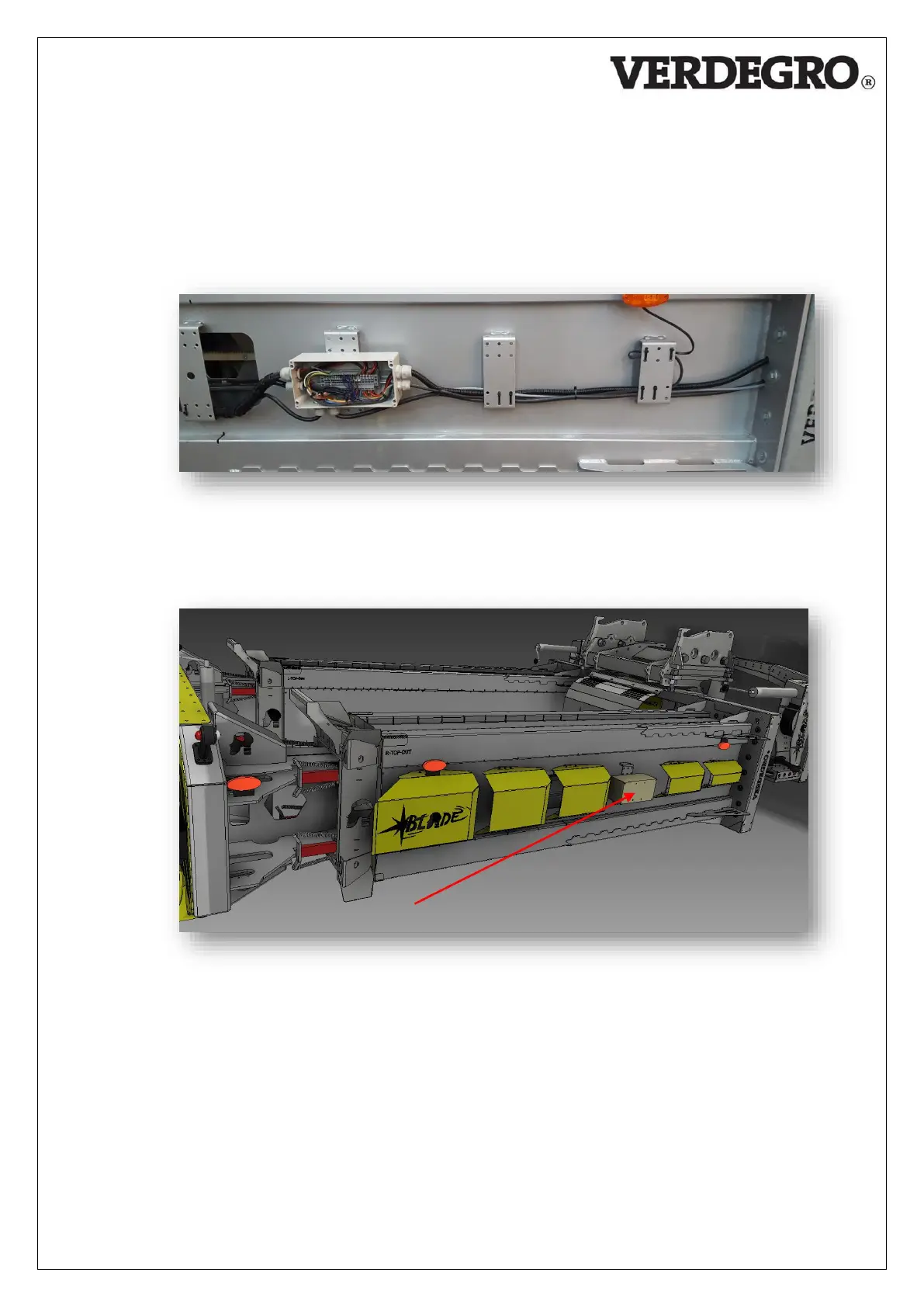

Figure 16
Figure 17
