VERDEGRO Blade - Right Hand Side Junction Box

Page 32 of 68
Operation and maintenance manual Verdegro Blade
5.1.3 Junction box right hand side:

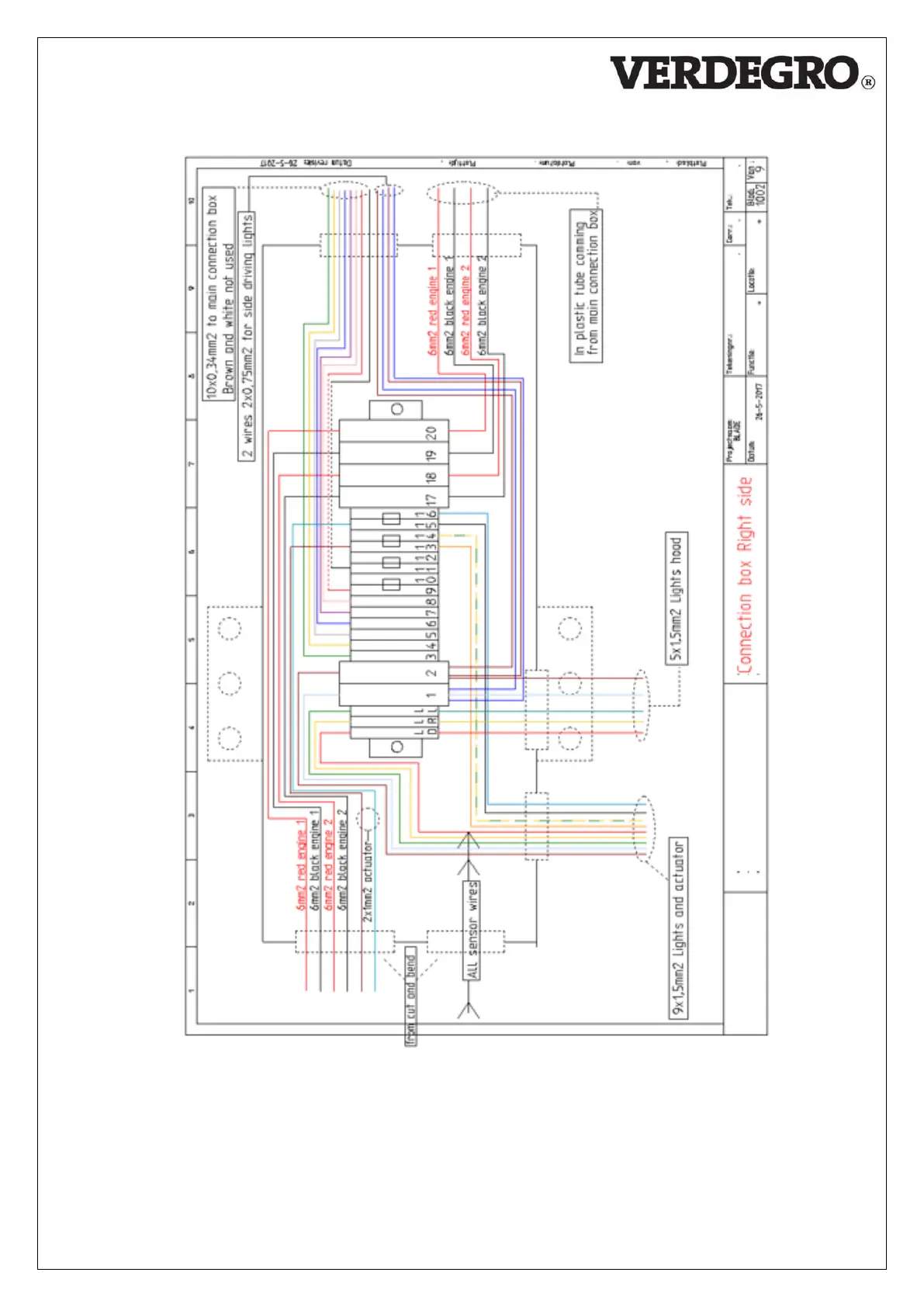

Figure 22
Connector LD = Brake light
Connector LR = Turn signal driver side
Connector LL = Turn signal passenger side
Connector 1 = Minus for driving lights passenger side
Connector 2 = Plus for driving lights passenger side
