10.1 Levelling your BLADE
Your BLADE is delivered with a unique levelling device to adjust the horizontal position of
the cushion). When the TMA is connected to the correctly installed truck bracket you can
adjust the cushion position using the level device. How to do this:
• Loosen the bolted (No.1) connection on left and right ( 6pcs in total). The bolts
must stay in the chassis and nuts must stay on the bolt!
• For adjustment of the horizontal position of the cushion use the bolt/nuts marked
as No.2; do this to on the left and right side of the TMA.
• To adjust the cushion up you can also use the jokey / swivel wheel at the center
end of the cushion. ( only use it retracted don’t push it hard, it’s only a help not a
truck jack ! ).
• After setting the cushion in proper horizontal position you can fasten ( look at max
Nm in table Par. 13.4 ) all bolts and nuts !

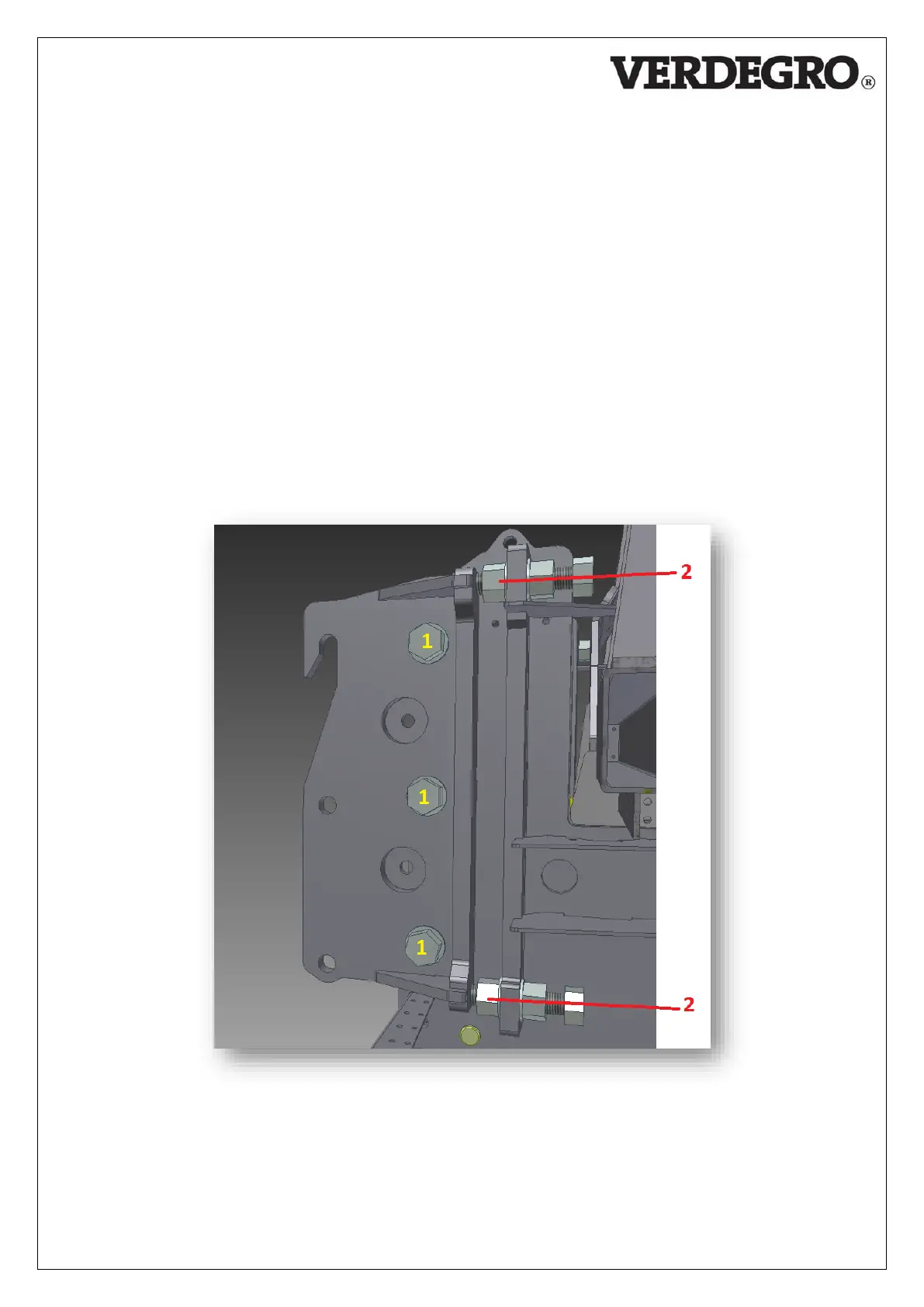

Image of the Blade level device on the Blade:
Figure 44
