Operation and maintenance manual Verdegro Blade
10 Bracket dimension

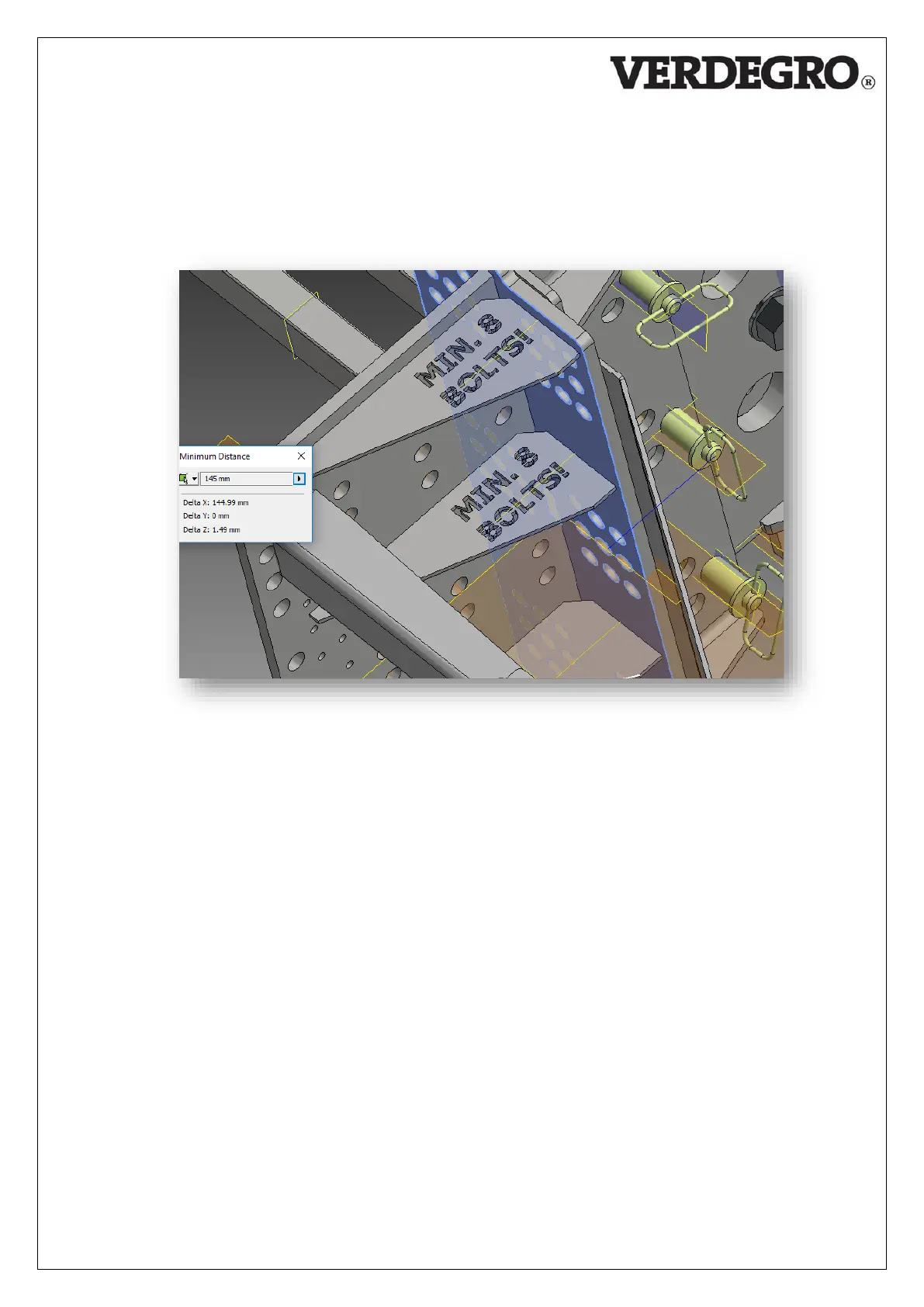

The dimension from the back of truck chassis to the center of the hitch pins is 145mm
horizontal.
Figure 43
