VERDEGRO Blade - Center of Gravity Calculations

Page 49 of 68
Operation and maintenance manual Verdegro Blade

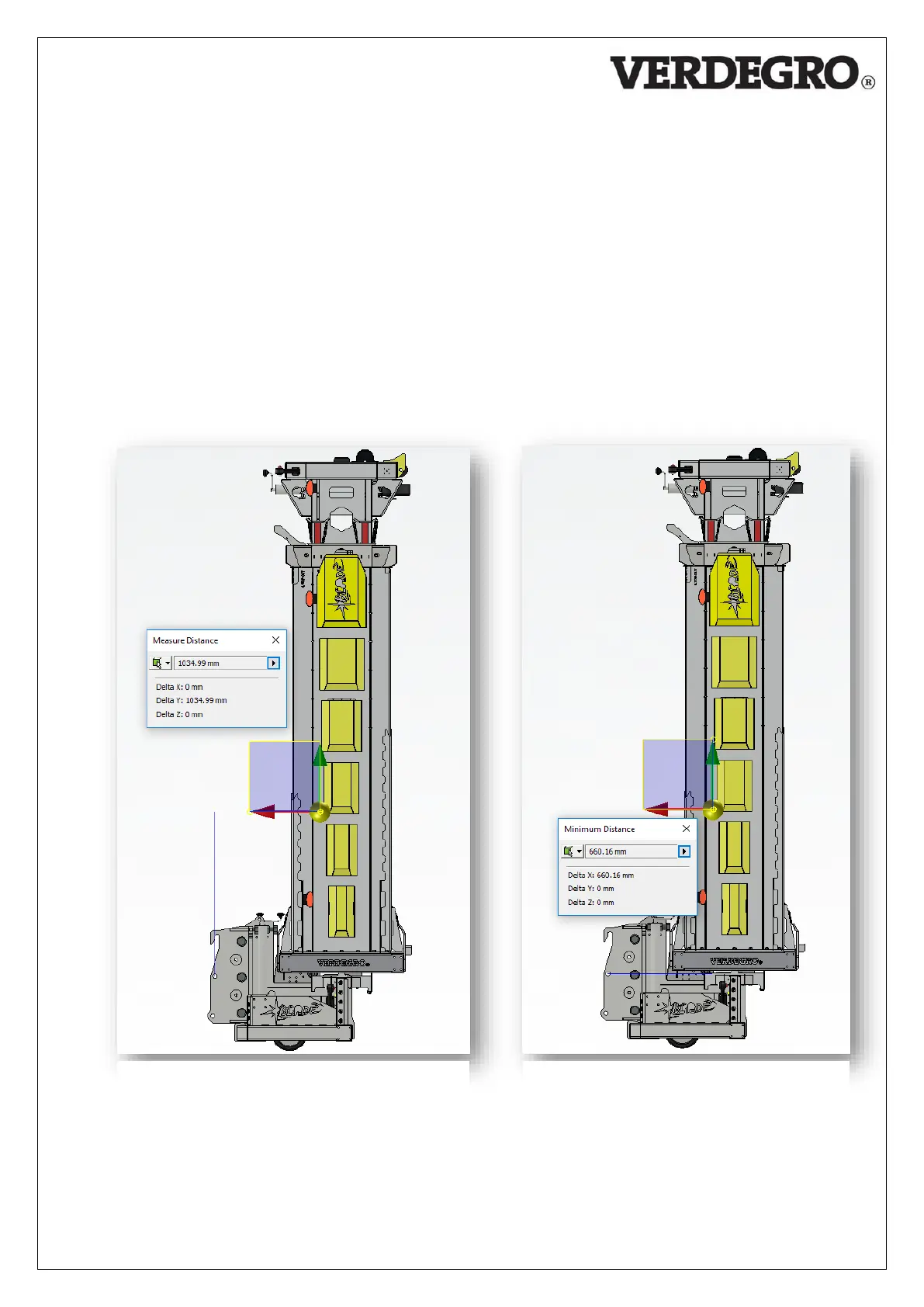

Figure 40
Figure 39
9.3 Center of Gravity
Below information can be used to calculate if the truck chassis can stand the weight of the
Blade TMA.
9.3.1 Upwards:
• 660mm from center middle hitch pin to horizontal center of the gravity point
• 1035mm from center middle hitch pin to vertical center of the gravity point
