Operation and maintenance manual Verdegro Blade

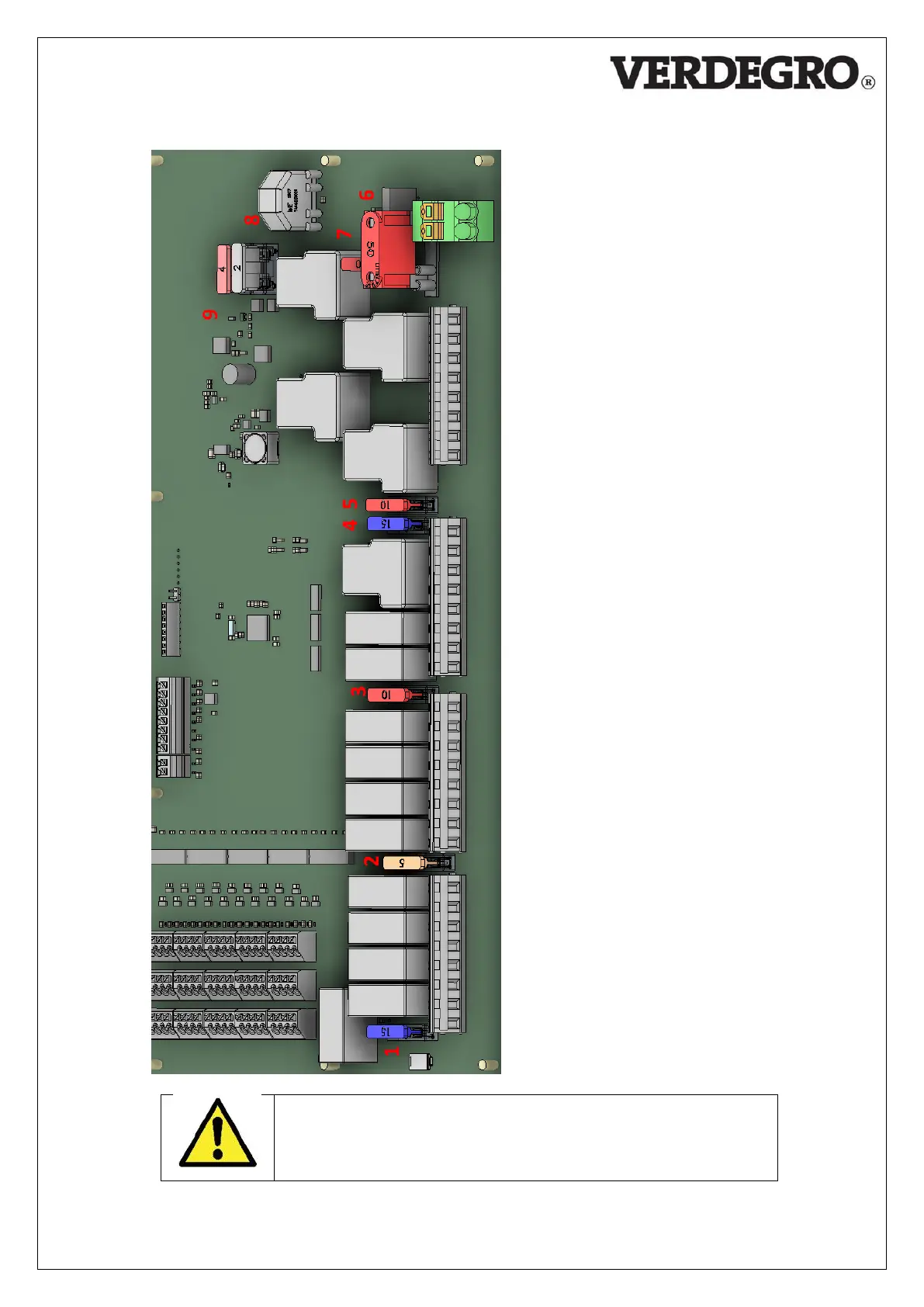

5.2 Fuse board

1. Extend/Retract: F10, 15A, Fast Acting

2. Actuators, Hydraulic pump, Beeper, F5,

10A, Fast Acting

3. TMA Up/Down: F9, 10A, Fast Acting

4. Optional Beacons: F7, 15A, Fast Acting

5. Function Button 1: F8, 10A, Fast Acting

6. Main Fuse: F12, 40A (12V) Slow Blow, 20A

(24V) Slow Blow. Model: MAXI

7. Optional Arrow Board: F6, 10A, Fast Acting

8. Voltage Selector Fuse: F4, 2A, Fast Acting

24V Only

9. Voltage SelectorFuse: F3, 4A, Fast Acting

12V Only

Voltage Selector Fuses: Always double check before placing.

Never use two fuses at once!
