VERDEGRO Blade - Center of Gravity: Extended Position

Page 50 of 68
Operation and maintenance manual Verdegro Blade

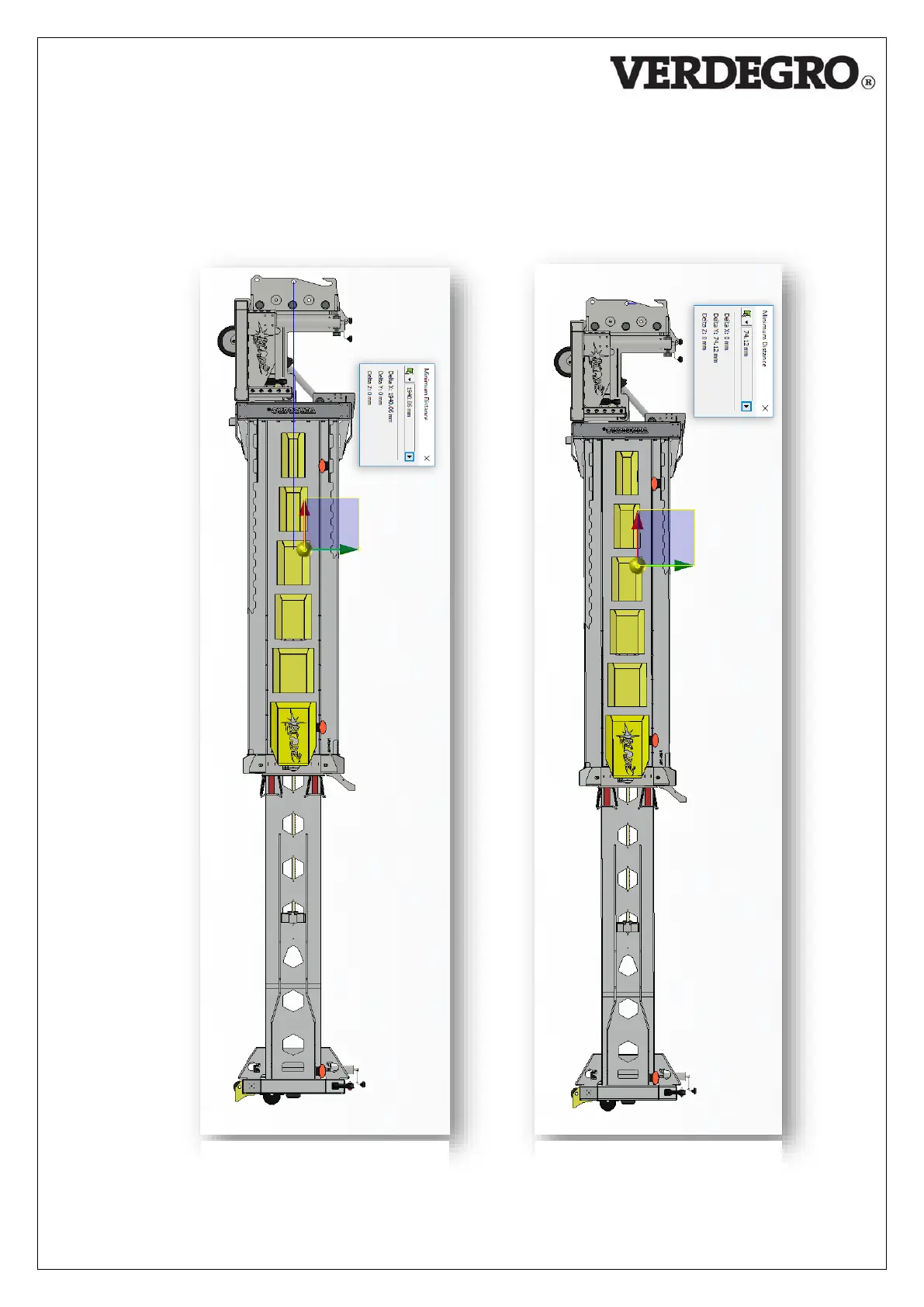

Figure 41
Figure 42
9.3.2 Extended
• 1940mm from center middle hitch pin to horizontal center of the gravity point.
• 74mm from center middle hitch pin to vertical center of the gravity point
