VeriFone Vx520 Manual

1. GETTING STARTED
1. GETTING STARTED

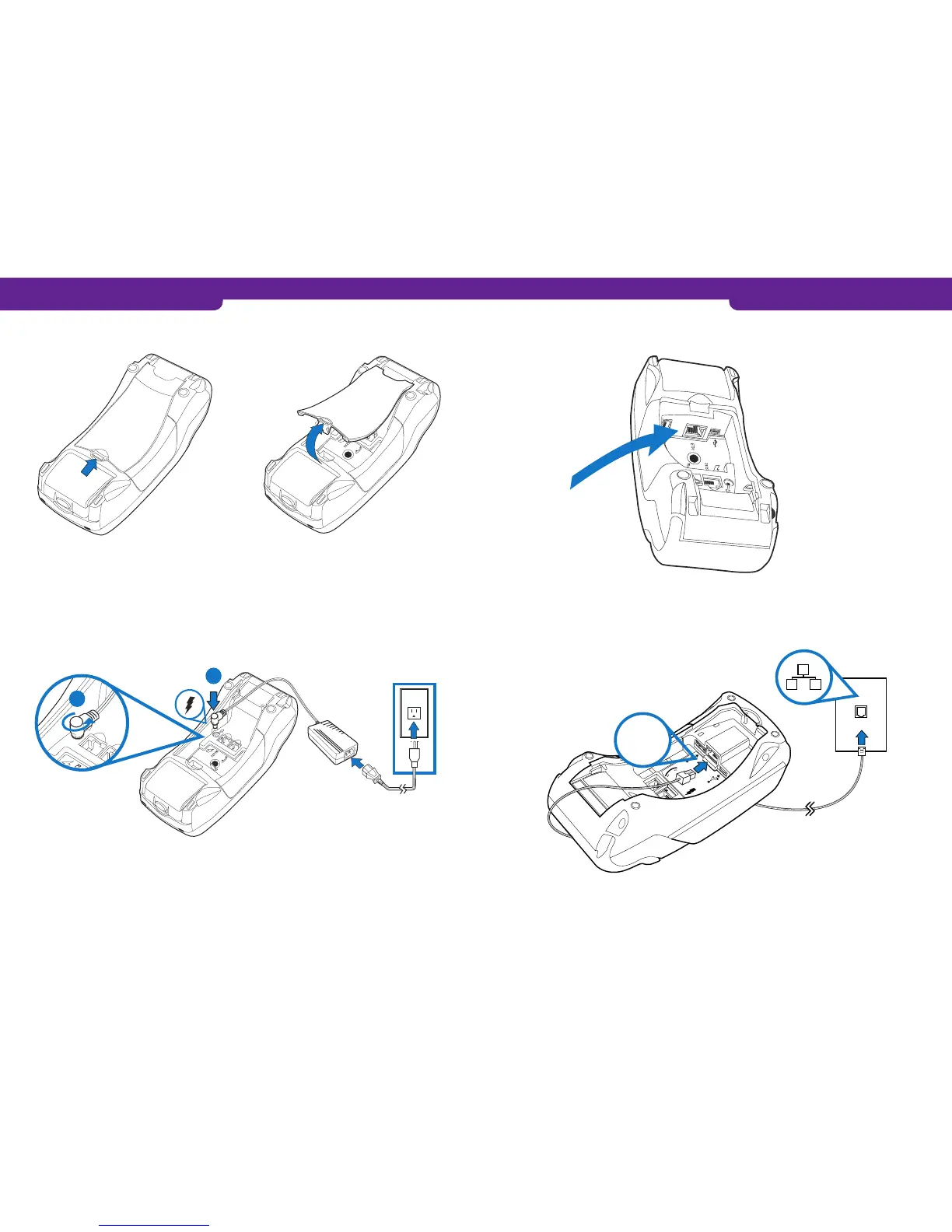

1.3 Connecting the cables
In order to access the connection ports, remove the cover.
1.3.1 Connecting the power cord
Connect the adapter to the main power cord, the power cord to the power supply and
the plug to an electrical outlet. The adapter is connected into the left port at the bot-
tom of the terminal.
1.3.2 Connecting the Ethernet cable
Connect the Ethernet cable to the ETH port at the bottom of the terminal. Connect the
other end of the cable either to a broadband modem or a plug.
A
B
RS232
ETH
ETH
6 7

VeriFone Vx520 Specifications

General

Peripheral Ports	RS-232, USB
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	0°C to 50°C (32°F to 122°F)
Processor	400 MHz ARM11
Memory	128 MB Flash
Display	128 x 64 pixel LCD with backlight
Connectivity	Dial-up, Ethernet
Card Readers	EMV chip
Contactless	Optional
Printer	Integrated thermal printer
Security	PCI PTS
SAM Slots	3
Compliance	EMV Level 1 & 2, RoHS
