1-4. View of 16-Port GbE Web Smart Switch
1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs)
There are 12 TP Gigabit Ethernet ports and 4 SFP fiber ports for optional removable modules on
the front panel of the switch. LED display area, located on the left side of the panel, contains a Power
LED, which indicates the power status and 16 ports working status of the switch.

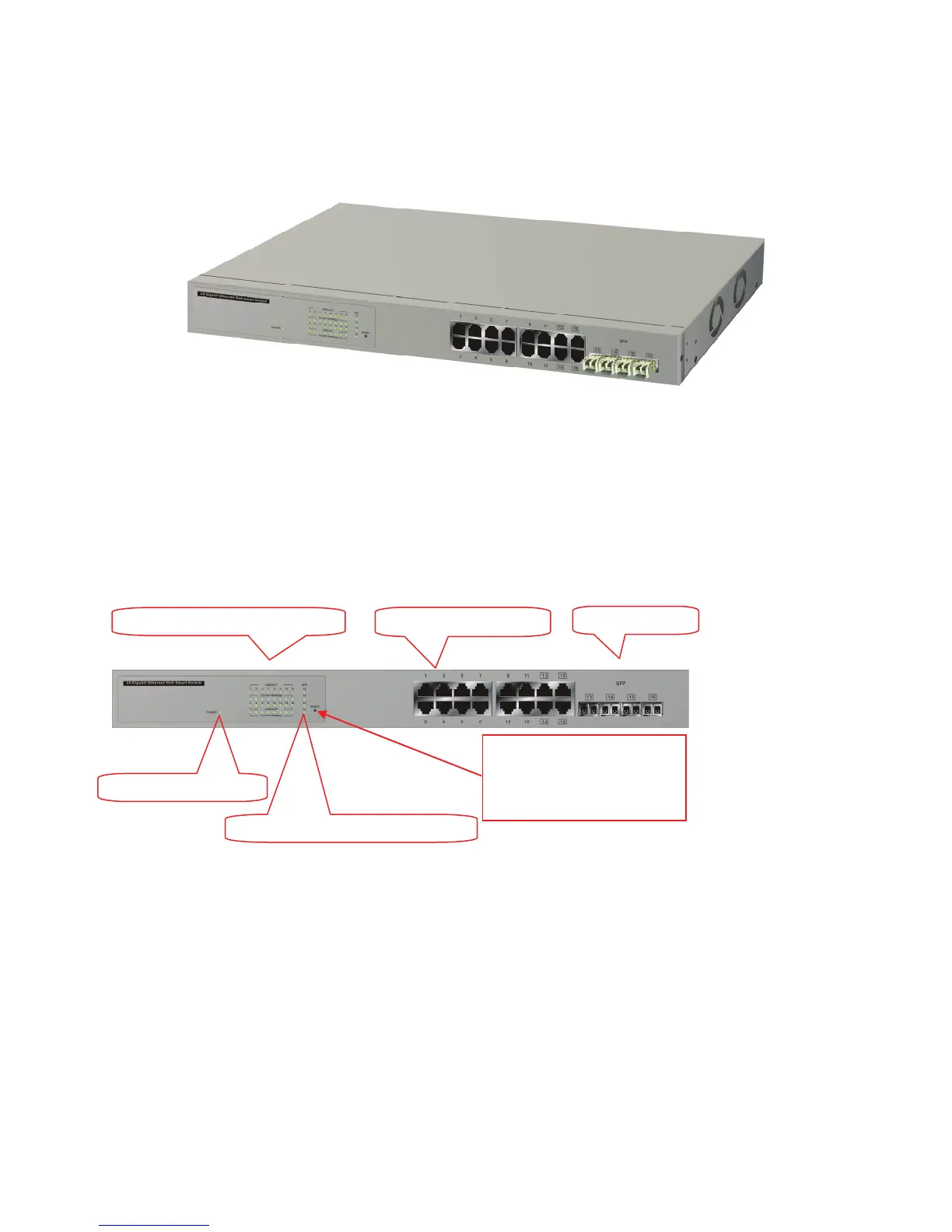

Fig. 1-1 Full View of 16-PORT GbE Web Smart Switch
Fig. 1-2 Front View of 16-Port GbE Web Smart Switch
Power Indication LED
Gi
g
abit Ethernet Port
TP Port Status Indication LEDs
RESET Button:
RESET button is used to
restore the system default
setting.
SFP Fiber Port
Fiber Port Status Indication LEDs
