4-2-13 Rate Limit
Function name:
Ingress and Egress Bandwidth Setting
Function description:
Ingress and Egress Bandwidth Setting function are used to set up the limit of Ingress or Egress
bandwidth for each port.
Parameter description:
Ingress:
Set up the limit of Ingress bandwidth for the port you choose. Incoming traffic will be discarded
if the rate exceeds the value you set up in Data Rate field. Pause frames are also generated if
flow control is enabled. The format of the packet limits to unicast, broadcast and multicast.
Valid value of Port 1~16 ranges from 128~3968 kbps.
Default: No Limit
Egress:
Set up the limit of Egress bandwidth for the port you choose. Outgoing traffic will be discarded
if the rate exceeds the value you set up in Data Rate field. Pause frames are also generated if
flow control is enabled. The format of the packet limits to unicast, broadcast and multicast.
Valid value of Port 1~16 ranges from 128~3968 kbps.
Default: No Limit

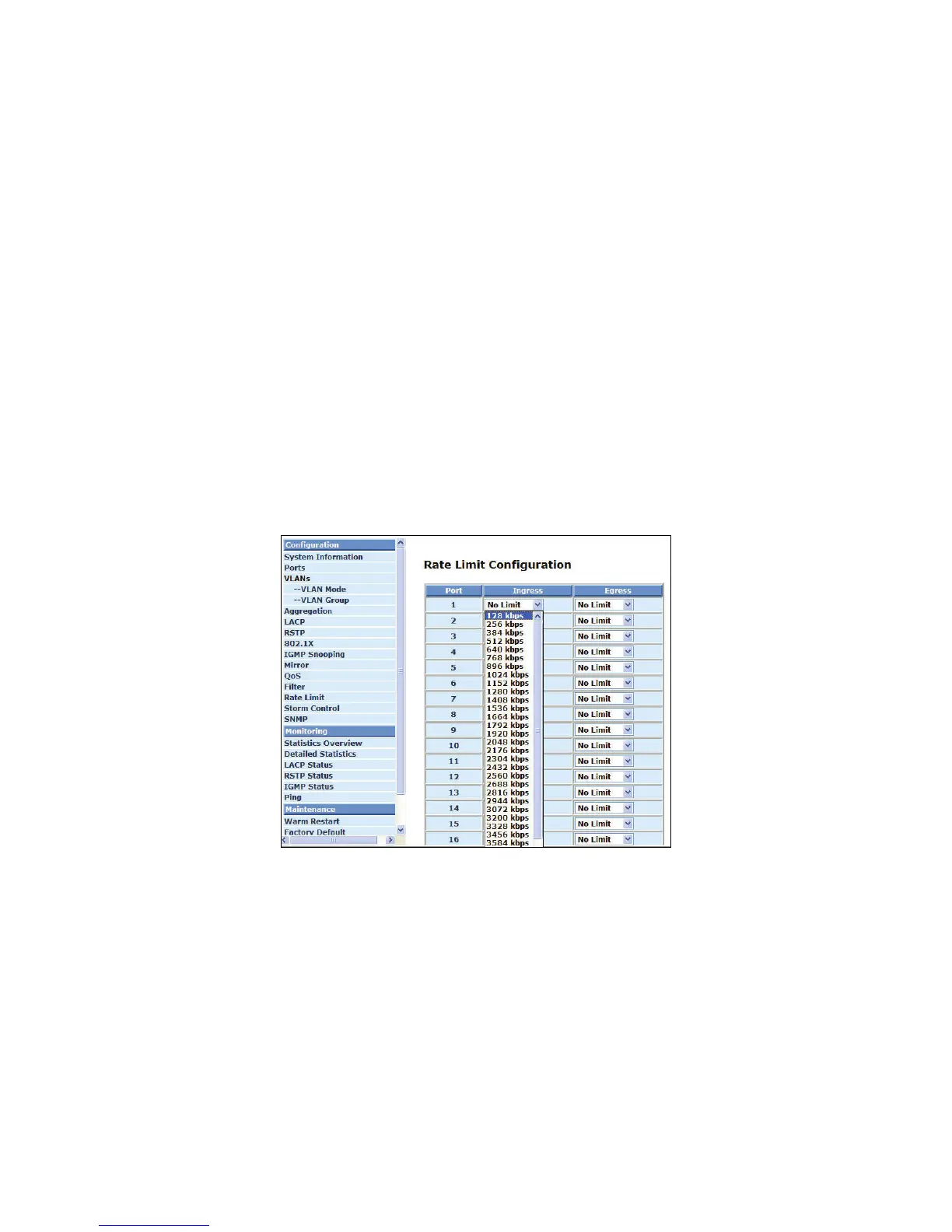

Fig. 4-25 Rate Limit Configuration
