4-2-10. Mirror Configuration
Function name:
Mirror Configuration
Function description:
Mirror Configuration is provided to monitor the traffic in the network. This switch supports one-port
mirror multi-ports. For example, we assume that Port A and Port B are Source Ports, and Port C is
Mirror Port respectively, thus, the traffic passing through Port A and Port B will be copied to Port C
for monitor purpose.
Parameter description:
Source Port:
Set up the port for being monitored. Just tick the check box (
;) beside the port x and valid port is
Port 1~16.
Mirror Port:
Use the drop-down menu to select a mirror port.

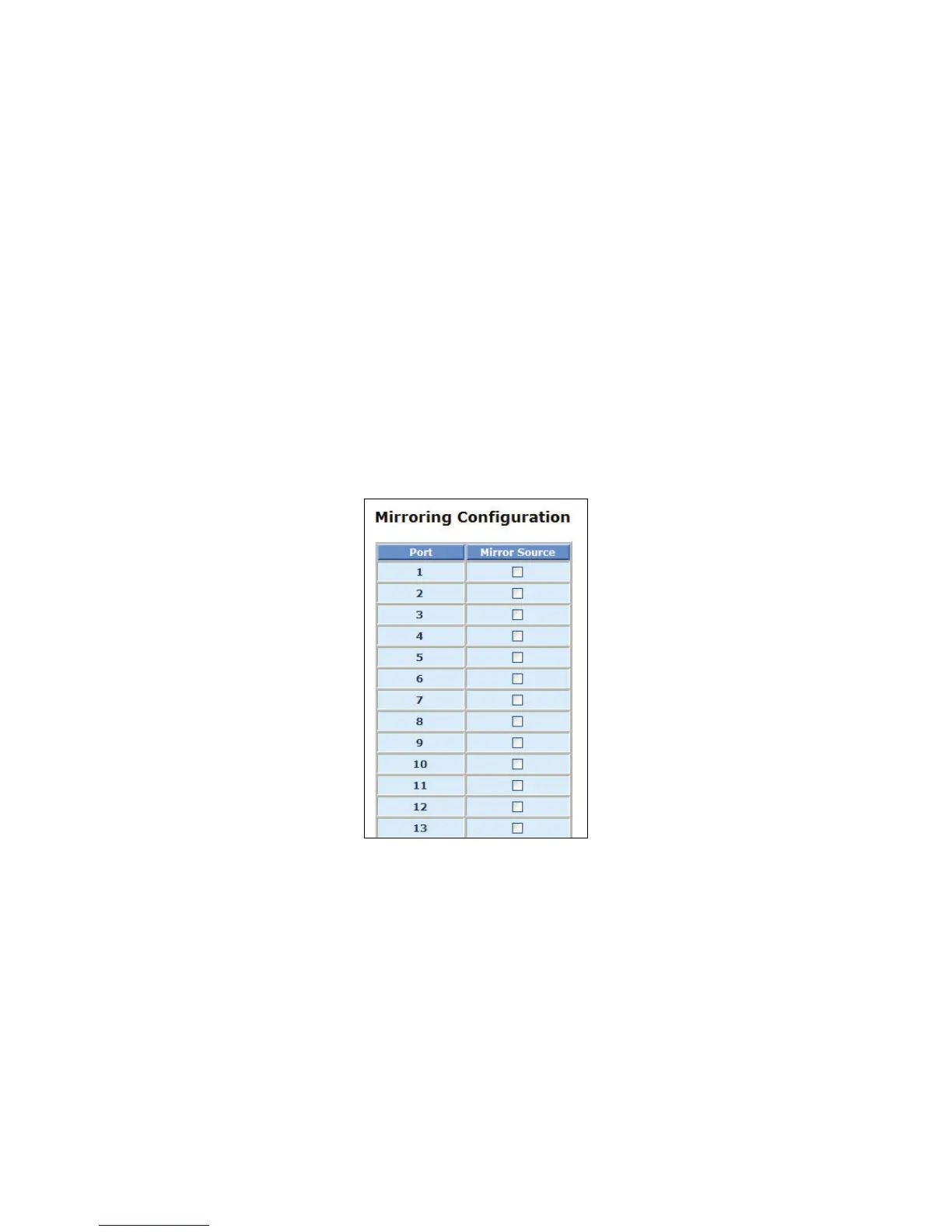

Fig. 4-20 Mirror ports configuration
