48

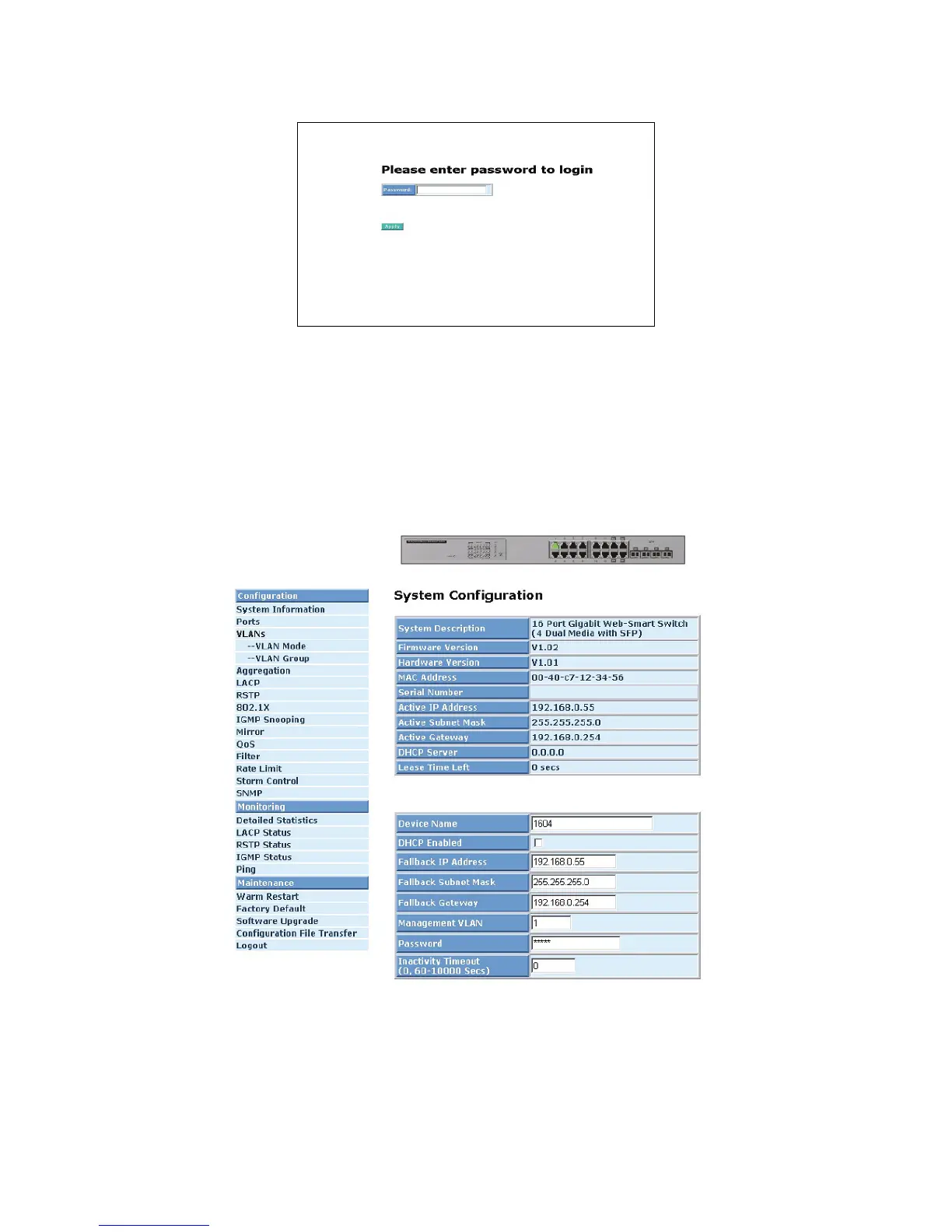

Fig. 4-1
4-1. Web Management Home Overview
After login, System Information would be displayed as Fig. 4-2 illustrated. This page lists default
values and shows you the basic information of the switch, including “Switch Status”, “TP Port Status”,
“Fiber Port Status”, “Aggregation”, “VLAN”, “Mirror”, “SNMP”, and “Maximum Packet Length”. With this
information, you will know the software version, MAC address, ports available and so on. For more details,
please refer to Section 4-4-1.
Fig. 4-2
