Vertiv Challenger 3000 - IR Assembly

Humidifier Section
September 2011 - 45 -

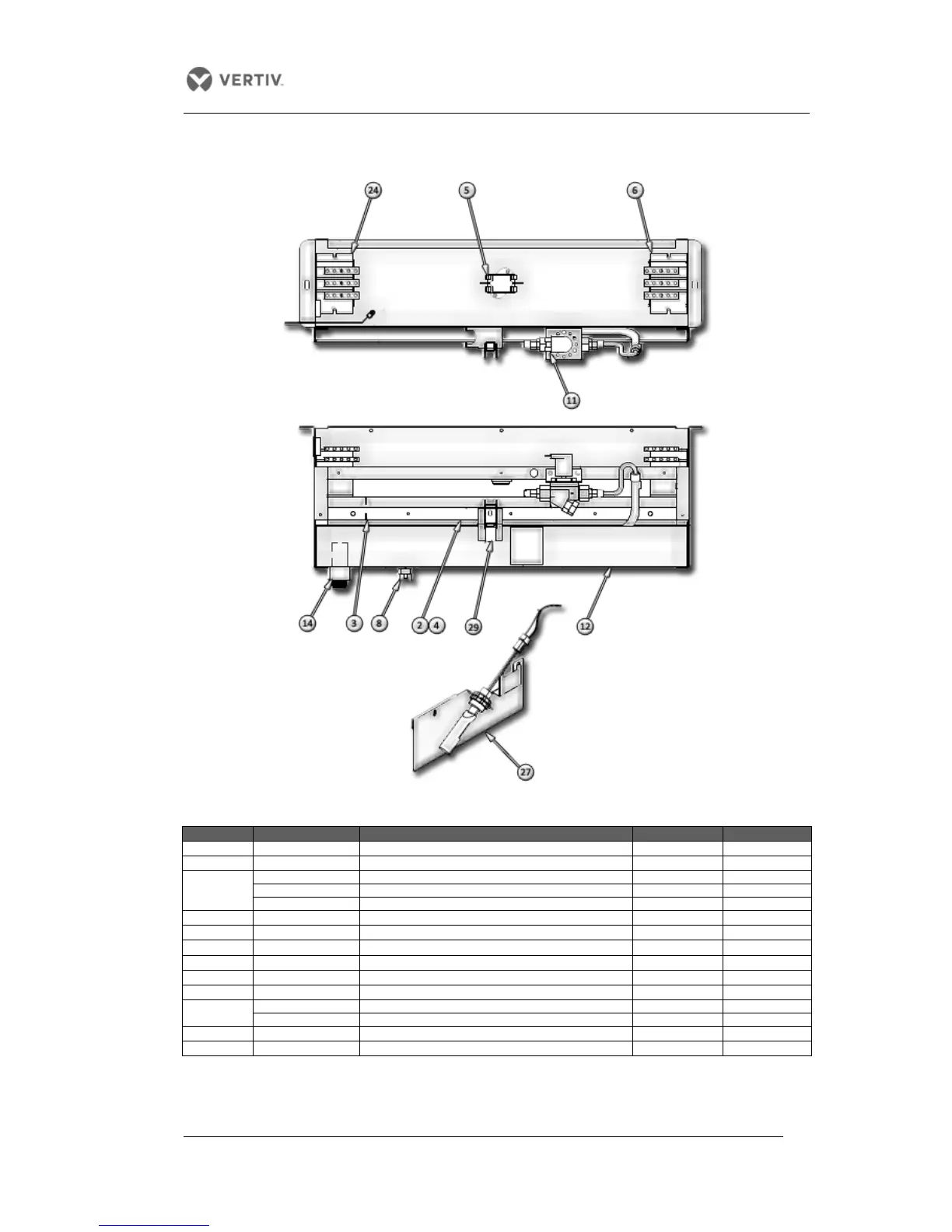

10.2.1. IR Assembly
Item
Part #
Description
Voltage
Quantity
2
124578P1
REFLECTOR IR HUMIDIFIER
-
1
3
F-6090
COVER END BLOCK
-
2
4
H-0020
LAMP I/R LINEAR/QRTZ 1600W240V
240V
3
H-002A
LAMP I/R LINEAR/QRTZ 1600W208V
208V
3
H13-0010
LAMP I/R LINEAR/QRTZ 1600W277V
277V
3
5
R13-0090
SAFETY SWT THERM 120F TR
-
1
6
009-0261
HUM SOCKET ASSY 3 5POS LEFT on Page 46
-
8
035-0342
HUM MAN RESET SAFETY on Page 46
-
11
185398G1
VALVA ASSY SOLENOID AUTOFLUSH on Page 46
-
12
179856G1
DRAIN PAN ASSY CHAL
-
1
14
1C18003G4
STANDPIPE ASSY W/O NUT
-
1
24
009-0262
HUM SOCKET ASSY 3 5POS RIGHT on Page 46
-
1
009-0261
HUM SOCKET ASSY 3 5POS LEFT on Page 46
-
1
27
179859G1
ALARM HIGH WATER C3000
-
1
29
136743P1
LATCH HUMIDIFIER PAN
-
1
