Vertiv Challenger 3000 - Discharge Line Assembly D;U; Hot Gas ASM 3;5 T (141141 G1)

Challenger 3000 w/ iCOM
- 64 - September 2011

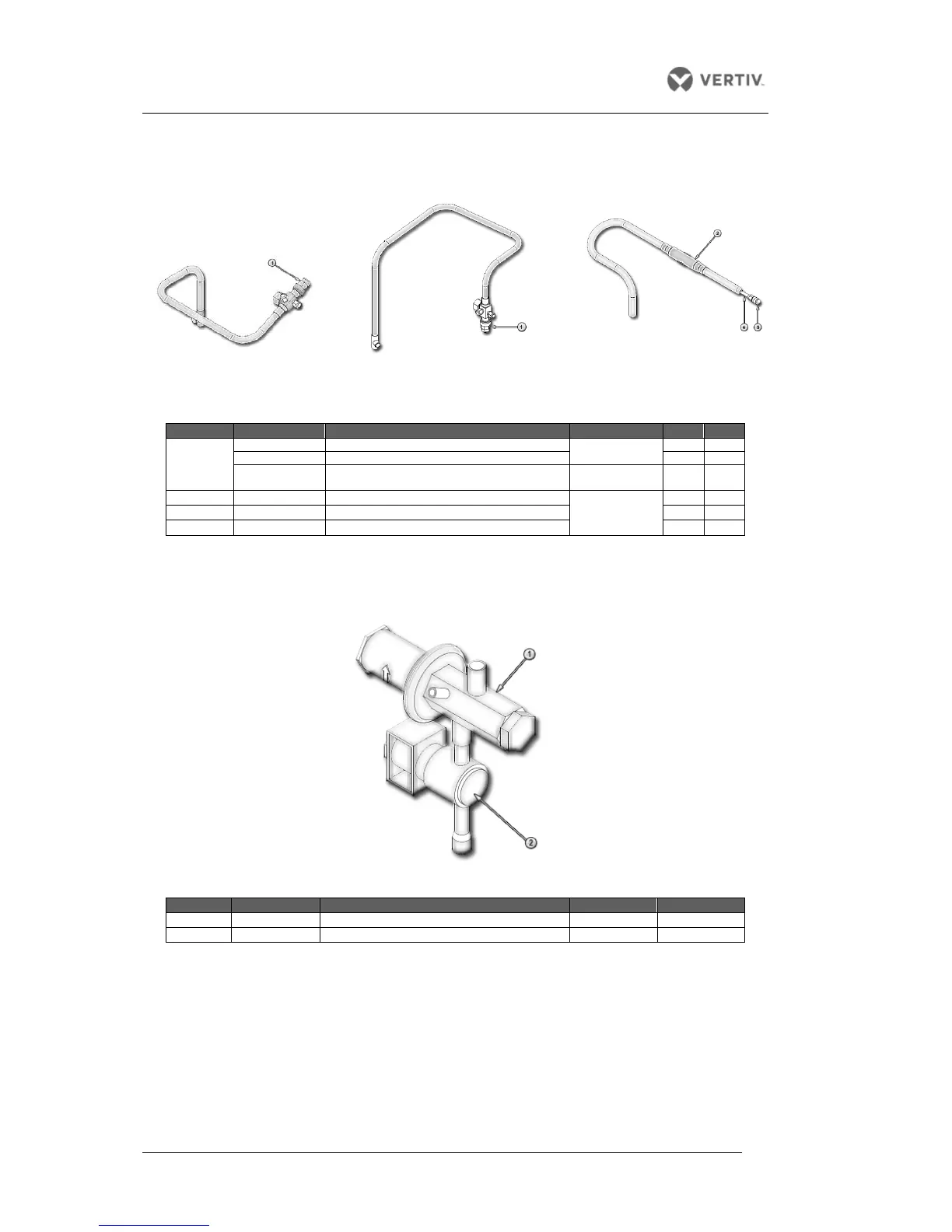

11.2.3. Discharge Line Assembly D/U
Upflow (141127G1)
Downflow (151150G1)
Downflow (197191G1)
Item
Part #
Description
Type
3T
5T
1
1C16925P1
VALVE ROTOLOCK 5/8" X1"-14UNS
UPFLOW
141127G1
1
1
1C16925P2
VALVE ROTOLOCK 7/8" X1-1/4"-12
1
1
151141P1 VALVE ROTOLOCK 5/8"X1"-14UNS
DOWNFLOW
197154G1
1 1
2
W-0093
VALVE CHECK 5/8" OD
DOWNFLOW
197191G1
1
1
4
187933G2
VALVE ACC BODY 1/4 EXT1" BEAD
1
1
5
P02-0290
VALVE CORE REFRIGERANT
1
1
11.2.4. Hot Gas ASM 3/5T (141141G1)
Item
Part #
Description
3T
5T
1
P-0180
VALVE BYPASS/DISCH 1/2ODF SLDR
1
1
2
P-0080
VALVE SOLENOID 1/2MXF 24V-50/60
1
1
